Stainless Steel Forged Weld Neck Flange
Stainless Steel Forged Weld Neck Flange
Note: MOQ, pricing, lead time and payment terms may vary depending on product grade, specifications, order quantity and processing requirements. Please contact QueenMetal (ding@queenmetalgroup.com) for a product-specific quotation.
Product Introduction

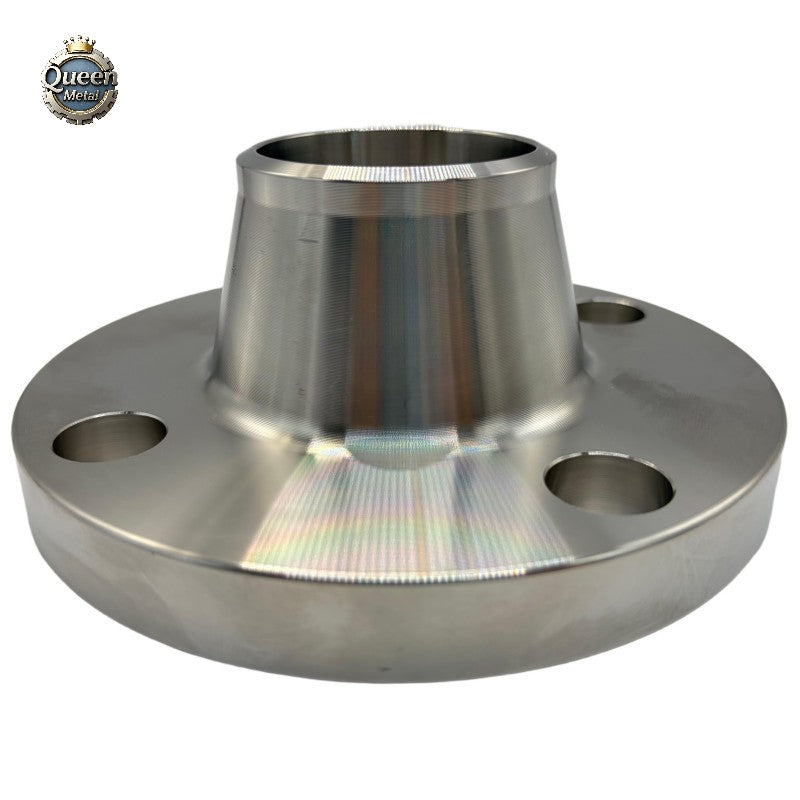

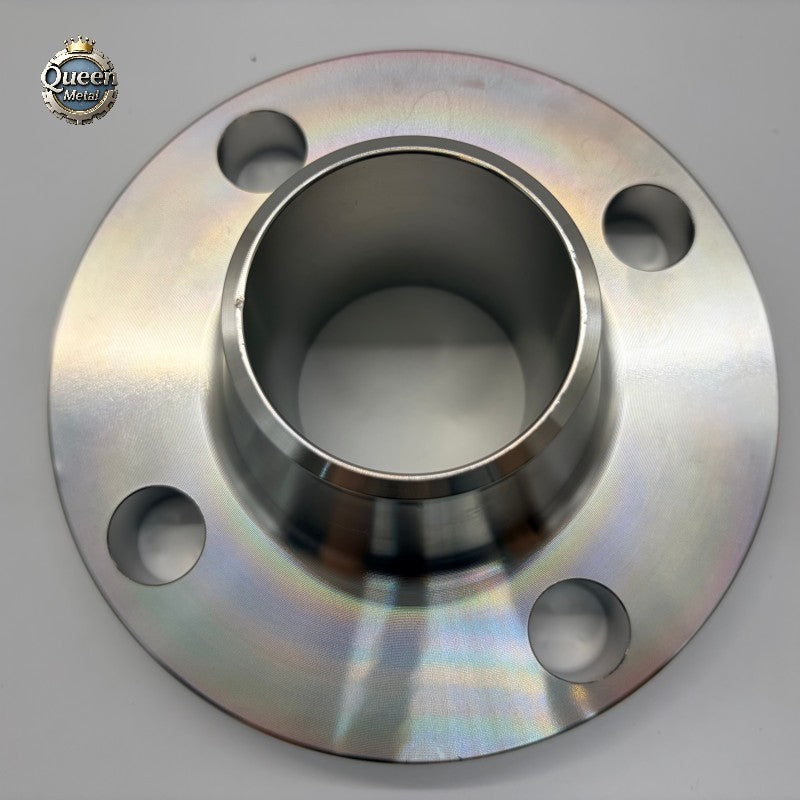

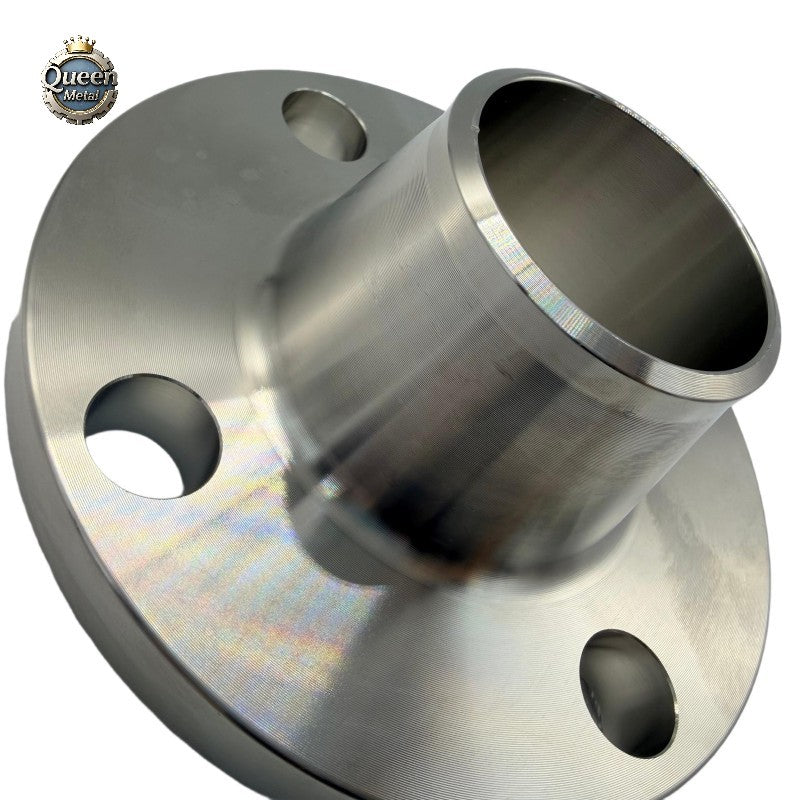

Stainless Steel Forged Weld Neck Flange is a high-strength pipe connection component designed for demanding piping systems where reliable performance under pressure and mechanical stress is required. Its long tapered hub and butt-weld connection provide a smooth transition between the pipe and flange, helping improve load distribution and connection stability. Forged construction offers excellent structural integrity, dimensional accuracy, and resistance to mechanical stress, while stainless steel provides strong corrosion resistance. Common grades include 304, 304L, 316, and 316L stainless steel for a wide range of industrial environments. Custom sizes, pressure ratings, facing types, dimensions, and precision machining are available according to applicable standards and project requirements.
Specifications
| Item | Specification |
|---|---|
| Product Type | Stainless Steel Forged Weld Neck Flange |
| Material | Stainless Steel |
| Common Grades | 304 / 304L / 316 / 316L / Other grades available upon request |
| Material Characteristics | High Strength / Corrosion Resistance / Pressure Resistance / Dimensional Stability |
| Manufacturing Process | Forged / Precision Machined |
| Standard | ASME / ANSI / DIN / EN / JIS / Other applicable standards |
| Flange Type | Weld Neck Flange |
| Nominal Size | Various standard sizes / Customized |
| Pressure Rating | According to applicable standards / Customized |
| Facing | RF / FF / RTJ / Other types according to requirements |
| Bore | Standard / Customized to Pipe Dimensions |
| Hub Design | Long Tapered Hub / Butt-Weld Connection |
| Bolt Hole | Standard drilling / Customized Bolt-Hole Pattern |
| Surface Finish | Machined / Mill Finish / Polished / Customized |
| Dimensions | According to applicable standards or Customer Drawings |
| Tolerance | According to applicable standards or customer requirements |
| Processing | Forging / CNC Machining / Drilling / Cutting / Polishing |
| Customization | Grade / Size / Thickness / Bore / Hub / Facing / Bolt Holes / Pressure Rating / Machining |
Need a Customized Solution?
If you cannot find a stainless steel forged weld neck flange for your project, please contact Queen Metal. We provide customized solutions based on your required grade, dimensions, standard, surface finish, end treatment, and application.
Send us your specifications, technical requirements, drawings, or parameter files, and our team will provide a suitable quotation and supply solution.
Email: ding@queenmetal.com
Applications & Industries
| Industry | Typical Applications |
|---|---|
| Oil & Gas | High-pressure pipelines, process piping, valves and equipment connections |
| Petrochemical | Process pipelines, pressure systems and industrial equipment |
| Chemical Processing | Corrosive fluid piping and process equipment |
| Power Generation | High-pressure piping, steam systems and power equipment |
| Marine & Offshore | Corrosion-resistant piping and offshore equipment |
| Water Treatment | Pumps, pipelines, valves and water treatment systems |
| Industrial Equipment | Pressure vessels, pumps, valves and heavy-duty piping systems |
| General Engineering | Fabricated piping, machinery and industrial connection systems |
Quality Assurance & Testing
| Inspection / Testing | Details |
|---|---|
| Material Verification | Chemical composition verification according to applicable standards |
| PMI Testing | Positive Material Identification available according to requirements |
| Dimensional Inspection | Flange OD, bore, thickness, hub dimensions, bolt-hole position, PCD and overall dimensions |
| Surface Inspection | Visual inspection for surface defects and machining condition |
| Mechanical Testing | Tensile and yield strength testing where required |
| Hardness Testing | Available according to material and order requirements |
| Forging Inspection | Inspection of forging condition, structural integrity and dimensional consistency |
| Machining Inspection | Precision verification of facing, bore, hub and bolt-hole dimensions |
| Weld Preparation Inspection | Inspection of weld-end dimensions and preparation according to applicable standards |
| Pressure / Leakage Testing | Available according to application and project requirements |
| MTC | Material Test Certificate available according to order requirements |
| Third-Party Inspection | SGS / BV or other third-party inspection available upon request |
Packaging & Logistics
| Item | Details |
|---|---|
| Packaging Standard | Export-standard stainless steel flange packaging |
| Surface Protection | Protective film or suitable surface protection where applicable |
| Individual Protection | Each flange protected against scratching, impact and surface damage during handling and transportation |
| Bundling | Bundled or separated according to flange size and order requirements |
| External Packaging | Waterproof paper / Plastic wrapping where applicable |
| Wooden Packaging | Wooden cases or pallets available according to product size and shipping requirements |
| Shipping Method | Container / Bulk shipment |
| Transportation Protection | Suitable protection for long-distance ocean transportation |
| MOQ | According to grade, size, standard and order requirements |
| Lead Time | Confirmed according to material availability, processing and order quantity |
| Customized Logistics | Packaging, marking and shipping arrangements available according to customer requirements |
FAQS
1. What is a Stainless Steel Forged Weld Neck Flange?
A Stainless Steel Forged Weld Neck Flange is a high-strength flange with a tapered hub and butt-weld connection designed for reliable connection of pipes and equipment in demanding piping systems.
2. What are the advantages of a Weld Neck Flange?
Its tapered hub provides a gradual transition between the pipe and flange, helping distribute mechanical loads and making the flange suitable for high-pressure, high-temperature, and demanding piping applications.
3. What stainless steel grades are commonly available?
Common grades include 304, 304L, 316, and 316L stainless steel, while other grades can be supplied according to the operating environment and project requirements.
4. Can the Weld Neck Flange be customized?
Yes. Size, thickness, bore, hub dimensions, pressure rating, facing, bolt-hole pattern, tolerances, and machining requirements can be customized according to customer drawings or applicable standards.
5. What inspection and certification documents can be provided?
Queen Metal can arrange material verification, PMI, dimensional inspection, mechanical testing, MTC, and third-party inspection such as SGS or BV according to order and project requirements.
Request a Quote Now
Tell us your requirements, including product type, specifications and quantity. Our professional team will provide a fast response and customized steel solutions.
