Stainless Steel Flat Weld Flange
Stainless Steel Flat Weld Flange
Note: MOQ, pricing, lead time and payment terms may vary depending on product grade, specifications, order quantity and processing requirements. Please contact QueenMetal (ding@queenmetalgroup.com) for a product-specific quotation.
Product Introduction

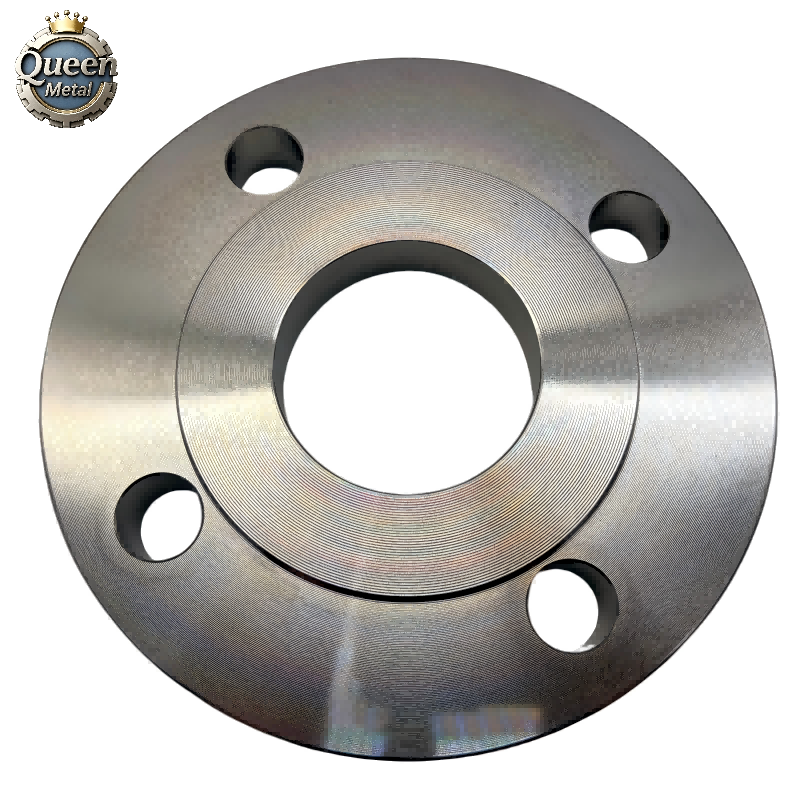

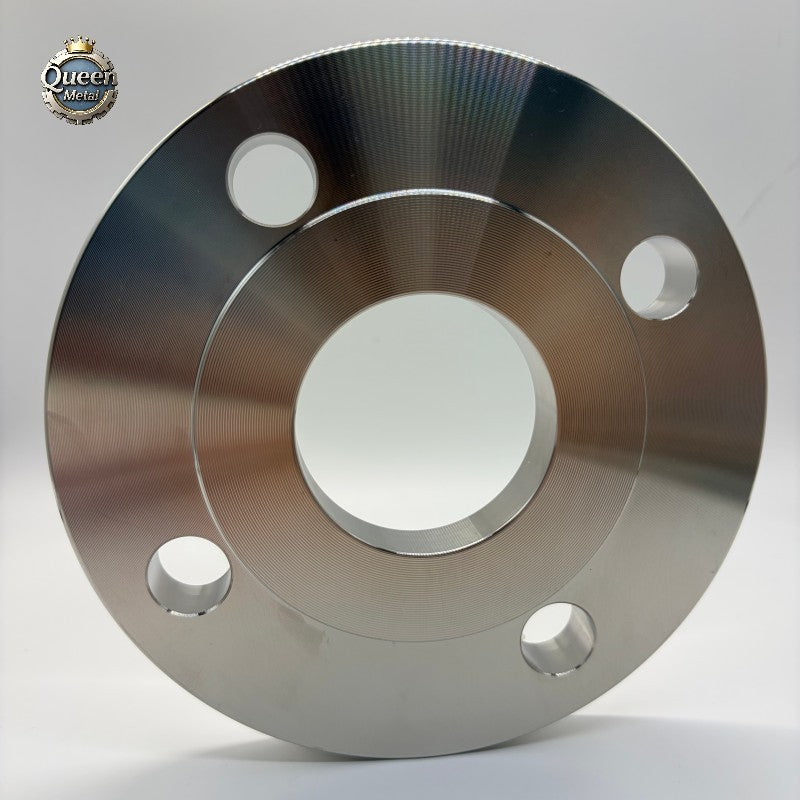

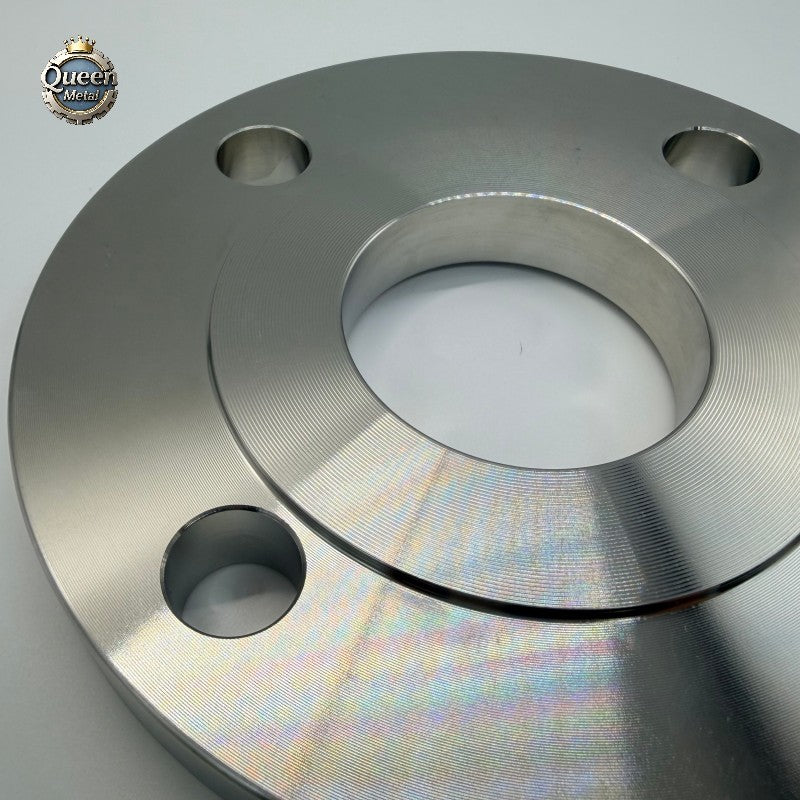

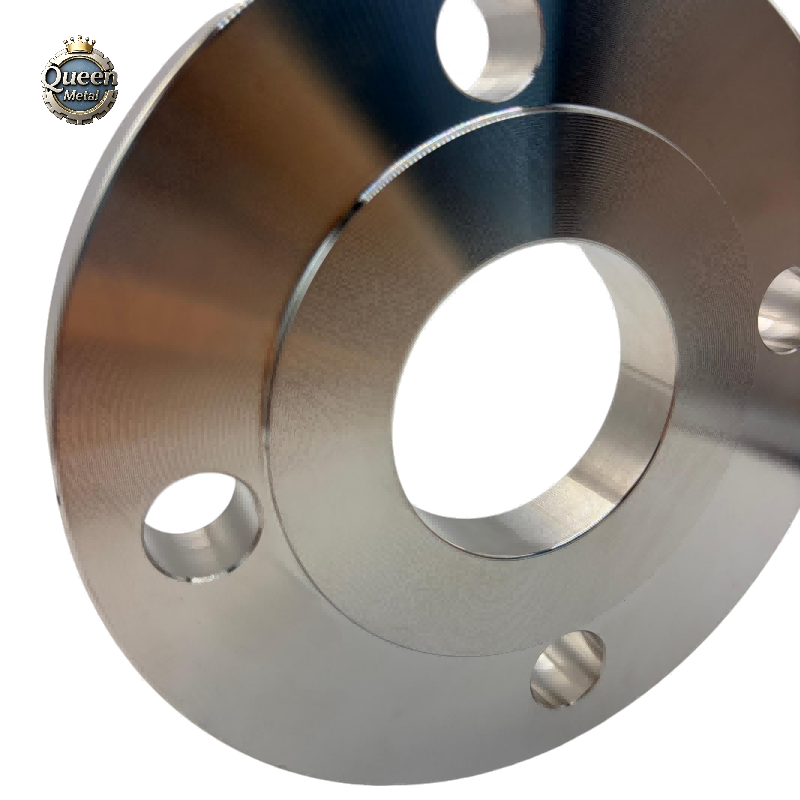

Stainless Steel Flat Weld Flange is a commonly used pipe connection component designed for connecting pipes, valves, pumps, and industrial equipment through welding and bolted connections. Its flat welding structure provides convenient installation, reliable sealing performance, and cost-effective connection solutions for various piping systems. Manufactured from stainless steel grades such as 304, 304L, 316, and 316L, it offers excellent corrosion resistance and long service life in demanding environments. The flange is widely used in chemical processing, water treatment, food processing, marine, and industrial piping applications. Custom dimensions, pressure ratings, standards, facing types, and machining services are available according to project requirements.
Specifications
| Item | Specification |
|---|---|
| Product Type | Stainless Steel Flat Weld Flange |
| Material | Stainless Steel |
| Common Grades | 304 / 304L / 316 / 316L / Other grades available upon request |
| Material Characteristics | Corrosion Resistance / Easy Installation / Reliable Sealing / Cost Efficiency |
| Manufacturing Process | Plate Cutting / Forming / Machining / Welding Process |
| Standard | ASME / ANSI / DIN / EN / JIS / Other applicable standards |
| Flange Type | Flat Weld Flange / Plate Welding Flange |
| Nominal Size | Various standard sizes / Customized |
| Pressure Rating | According to applicable standards / Customized |
| Facing | RF / FF / Other types according to requirements |
| Connection Type | Flat Welding Connection |
| Bore | Standard / Customized according to pipe dimensions |
| Bolt Hole | Standard drilling / Customized Bolt-Hole Pattern |
| Surface Finish | Machined / Mill Finish / Polished / Customized |
| Dimensions | According to applicable standards or customer drawings |
| Tolerance | According to applicable standards or customer requirements |
| Processing | Cutting / Machining / Drilling / Welding / Polishing |
| Customization | Grade / Size / Thickness / Bore / Facing / Bolt Holes / Pressure Rating / Machining |
Need a Customized Solution?
If you cannot find a stainless steel flat weld flange for your project, please contact Queen Metal. We provide customized solutions based on your required grade, dimensions, standard, surface finish, end treatment, and application.
Send us your specifications, technical requirements, drawings, or parameter files, and our team will provide a suitable quotation and supply solution.
Email: ding@queenmetal.com
Applications & Industries
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Pipeline connections, valves, pumps and industrial piping systems |
| Chemical Processing | Corrosion-resistant pipelines and process equipment |
| Petrochemical | Process piping, storage equipment and industrial systems |
| Water Treatment | Water pipelines, pumps and filtration systems |
| Food & Beverage | Stainless steel processing lines and hygienic piping systems |
| Marine & Offshore | Corrosion-resistant piping and marine equipment |
| Power Generation | Cooling systems, process piping and equipment connections |
| General Industrial | Tanks, pumps, valves and fabricated piping systems |
Quality Assurance & Testing
| Inspection / Testing | Details |
|---|---|
| Material Verification | Chemical composition verification according to applicable standards |
| PMI Testing | Positive Material Identification available according to requirements |
| Dimensional Inspection | Flange diameter, thickness, bore, bolt-hole position and overall dimensions |
| Surface Inspection | Inspection of surface condition and machining quality |
| Mechanical Testing | Tensile strength and yield strength testing where required |
| Hardness Testing | Available according to material grade and order requirements |
| Welding Inspection | Inspection of welding quality and connection integrity |
| Machining Inspection | Verification of facing, bore and bolt-hole accuracy |
| Pressure / Leakage Testing | Available according to application and project requirements |
| MTC | Material Test Certificate available according to order requirements |
| Third-Party Inspection | SGS / BV or other third-party inspection available upon request |
Packaging & Logistics
| Item | Details |
|---|---|
| Packaging Standard | Export-standard stainless steel flange packaging |
| Surface Protection | Protective film or suitable surface protection where applicable |
| Individual Protection | Each flange protected against scratching, impact and surface damage during transportation |
| Bundling | Bundled or separated according to flange size and order requirements |
| External Packaging | Waterproof paper / Plastic wrapping where applicable |
| Wooden Packaging | Wooden cases or pallets available according to product size and shipping requirements |
| Shipping Method | Container / Bulk shipment |
| Transportation Protection | Suitable protection for long-distance ocean transportation |
| MOQ | According to grade, size, standard and order requirements |
| Lead Time | Confirmed according to material availability, processing and order quantity |
| Customized Logistics | Packaging, marking and shipping arrangements available according to customer requirements |
FAQS
1. What is a Stainless Steel Flat Weld Flange?
A Stainless Steel Flat Weld Flange is a pipe flange connected by flat welding, commonly used for joining pipes, valves, pumps, and equipment in industrial piping systems.
2. What are the advantages of a flat weld flange?
Its advantages include simple installation, reliable connection, easy maintenance, cost efficiency, and good corrosion resistance when manufactured with suitable stainless steel grades.
3. What stainless steel grades are available?
Common grades include 304, 304L, 316, and 316L stainless steel. Other grades can be supplied according to application requirements.
4. What is the difference between Flat Weld Flange and Weld Neck Flange?
A Flat Weld Flange uses a simpler welding connection method, while a Weld Neck Flange uses a tapered hub and butt-weld connection, making it more suitable for higher pressure and demanding applications.
5. Can the flange be customized?
Yes. Queen Metal provides customized flat weld flange solutions based on required grade, size, thickness, pressure rating, facing type, bolt-hole pattern, standard, and application.
Request a Quote Now
Tell us your requirements, including product type, specifications and quantity. Our professional team will provide a fast response and customized steel solutions.
