Stainless Steel Butt Weld Equal Tee
Stainless Steel Butt Weld Equal Tee
Note: MOQ, pricing, lead time and payment terms may vary depending on product grade, specifications, order quantity and processing requirements. Please contact QueenMetal (ding@queenmetalgroup.com) for a product-specific quotation.
Product Introduction

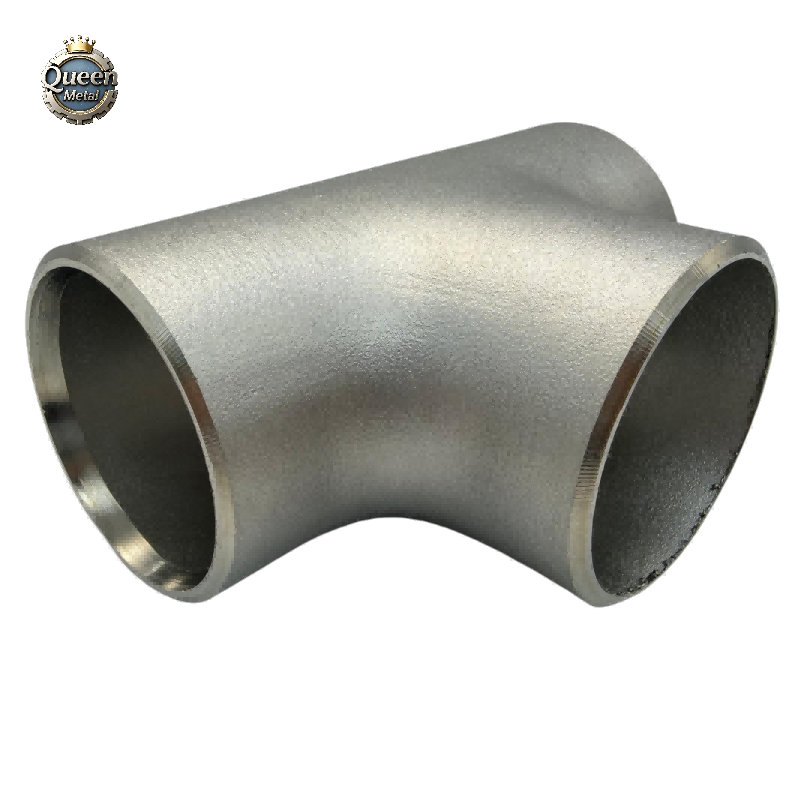

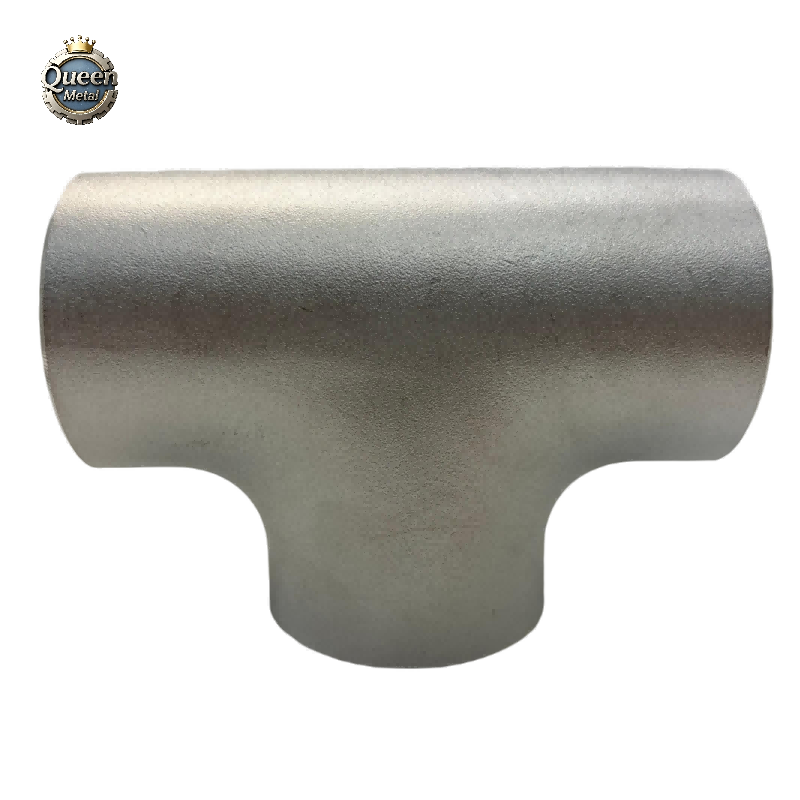

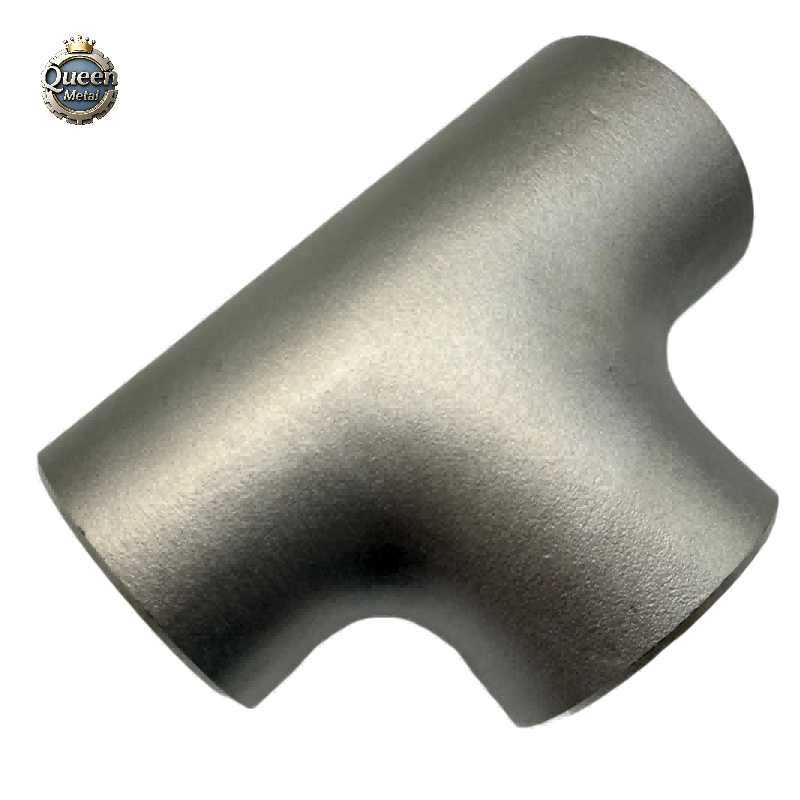

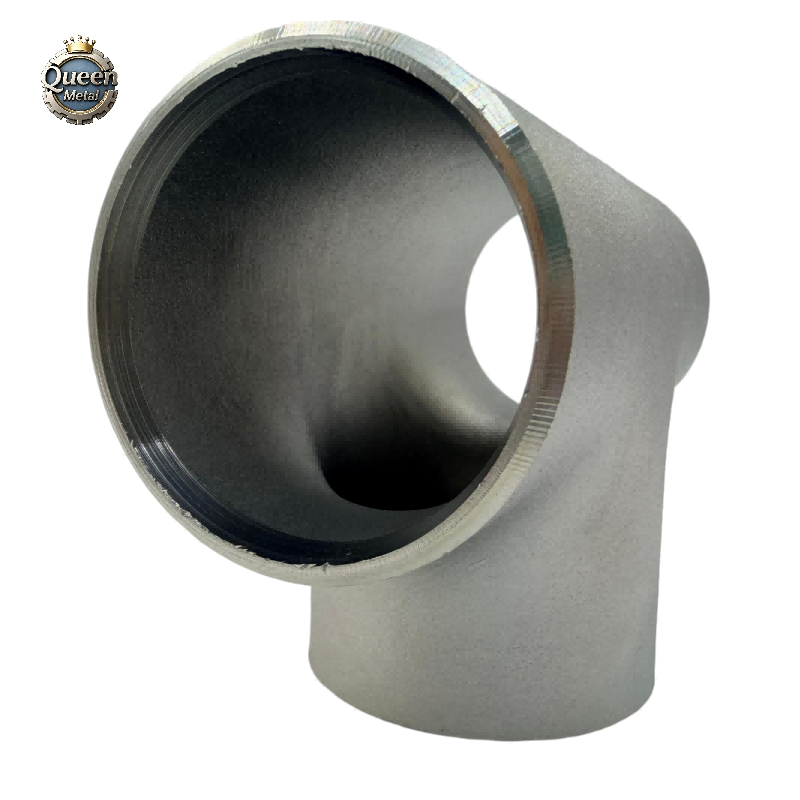

Stainless Steel Butt Weld Equal Tee is a pipe fitting designed to create a branch connection while maintaining the same pipe diameter across all three outlets. Manufactured according to international butt-weld fitting standards, it provides reliable welding performance, smooth flow distribution, and excellent dimensional accuracy. Stainless steel grades such as 304, 304L, 316, and 316L offer outstanding corrosion resistance and long-term durability in demanding environments. The equal tee design is widely used for fluid distribution, pipeline branching, and process system connections. Custom sizes, wall thicknesses, standards, surface finishes, and inspection requirements are available according to customer specifications.
Specifications
| Item | Specification |
|---|---|
| Product Type | Stainless Steel Butt Weld Equal Tee |
| Material | Stainless Steel |
| Common Grades | 304 / 304L / 316 / 316L / Other grades available upon request |
| Material Characteristics | Corrosion Resistance / Good Weldability / Smooth Flow Distribution / Long Service Life |
| Manufacturing Process | Cold Forming / Hot Forming / Precision Manufacturing |
| Standard | ASME B16.9 / MSS SP-43 / DIN / EN / JIS / Other applicable standards |
| Fitting Type | Butt Weld Tee |
| Tee Type | Equal Tee (Same Diameter Branch Connection) |
| Size Range | Various standard sizes / Customized |
| Wall Thickness | SCH 5S / SCH 10S / SCH 40S / SCH 80S / Customized |
| Connection Type | Butt Weld Connection |
| End Type | Beveled Ends / Customized |
| Surface Finish | Pickled / Polished / Mill Finish / Customized |
| Dimensions | According to applicable standards or customer drawings |
| Tolerance | According to applicable standards or customer requirements |
| Processing | Cutting / Forming / Welding Preparation / Polishing / Customized |
| Customization | Grade / Size / Thickness / Tee Type / End Preparation / Surface Finish / Inspection Requirements |
Need a Customized Solution?
If you cannot find a stainless steel butt weld equal tee for your project, please contact Queen Metal. We provide customized solutions based on your required grade, dimensions, standard, surface finish, end treatment, and application.
Send us your specifications, technical requirements, drawings, or parameter files, and our team will provide a suitable quotation and supply solution.
Email: ding@queenmetal.com
Applications & Industries
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Pipeline branching, process piping and fluid transportation systems |
| Chemical Processing | Corrosive fluid pipelines and chemical production systems |
| Petrochemical | Process equipment, pipelines and industrial connections |
| Water Treatment | Water distribution systems, pumps and filtration equipment |
| Food & Beverage | Hygienic stainless steel piping and processing systems |
| Pharmaceutical | High-purity piping systems and sanitary applications |
| Marine & Offshore | Corrosion-resistant piping networks |
| General Industrial | Equipment piping, tanks and fabricated pipeline systems |
Quality Assurance & Testing
| Inspection / Testing | Details |
|---|---|
| Material Verification | Chemical composition verification according to applicable standards |
| PMI Testing | Positive Material Identification available according to requirements |
| Dimensional Inspection | Outside diameter, branch diameter, wall thickness, length and dimensional accuracy |
| Surface Inspection | Inspection of internal and external surface quality |
| Mechanical Testing | Tensile strength and mechanical property testing where required |
| Hardness Testing | Available according to material grade and order requirements |
| Forming Inspection | Inspection of tee shape, branch alignment and forming quality |
| Wall Thickness Inspection | Verification of thickness uniformity |
| Hydrostatic / Pressure Testing | Available according to application requirements |
| MTC | Material Test Certificate available according to order requirements |
| Third-Party Inspection | SGS / BV or other third-party inspection available upon request |
Packaging & Logistics
| Item | Details |
|---|---|
| Packaging Standard | Export-standard stainless steel pipe fitting packaging |
| Surface Protection | Plastic caps, protective film or suitable protection materials |
| Individual Protection | Each fitting protected against scratching, impact and contamination |
| Bundling | Bundled according to size and order requirements |
| External Packaging | Waterproof paper / Plastic wrapping where applicable |
| Wooden Packaging | Wooden cases or pallets available according to product size and shipping requirements |
| Shipping Method | Container / Bulk shipment |
| Transportation Protection | Suitable protection for long-distance ocean transportation |
| MOQ | According to grade, size, standard and order requirements |
| Lead Time | Confirmed according to material availability, processing and order quantity |
| Customized Logistics | Packaging, marking and shipping arrangements available according to customer requirements |
FAQS
1. What is a Stainless Steel Butt Weld Equal Tee?
A Stainless Steel Butt Weld Equal Tee is a pipe fitting with three outlets of the same diameter used to create branch connections in piping systems.
2. What is the difference between Equal Tee and Reducing Tee?
An Equal Tee has the same diameter for the main pipe and branch outlet, while a Reducing Tee has a smaller branch outlet for different flow requirements.
3. What are the advantages of stainless steel equal tees?
They provide excellent corrosion resistance, reliable welded connections, smooth fluid distribution, high dimensional accuracy, and long service life.
4. What stainless steel grades are available?
Common grades include 304, 304L, 316, and 316L stainless steel. Other grades can be supplied according to application requirements.
5. Can Queen Metal customize stainless steel equal tees?
Yes. Queen Metal provides customized tee fitting solutions based on required grade, size, thickness, tee type, standard, surface finish, inspection requirements, and application.
Request a Quote Now
Tell us your requirements, including product type, specifications and quantity. Our professional team will provide a fast response and customized steel solutions.
