Galvalume Steel Coil (GL Coil)
Galvalume Steel Coil (GL Coil)
Note: MOQ, pricing, lead time and payment terms may vary depending on product grade, specifications, order quantity and processing requirements. Please contact QueenMetal (ding@queenmetalgroup.com) for a product-specific quotation.
Product Introduction

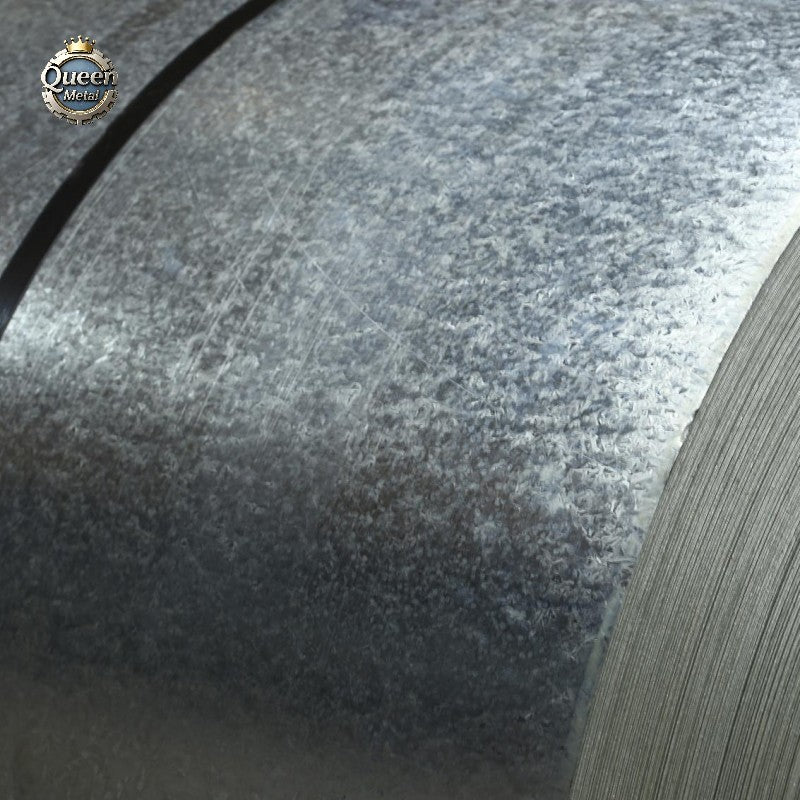

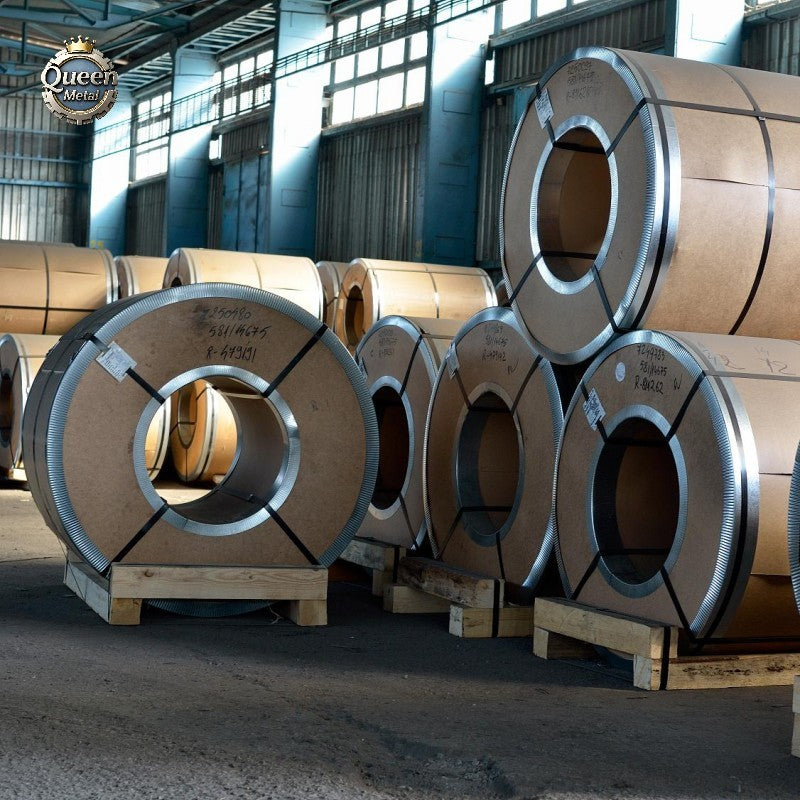

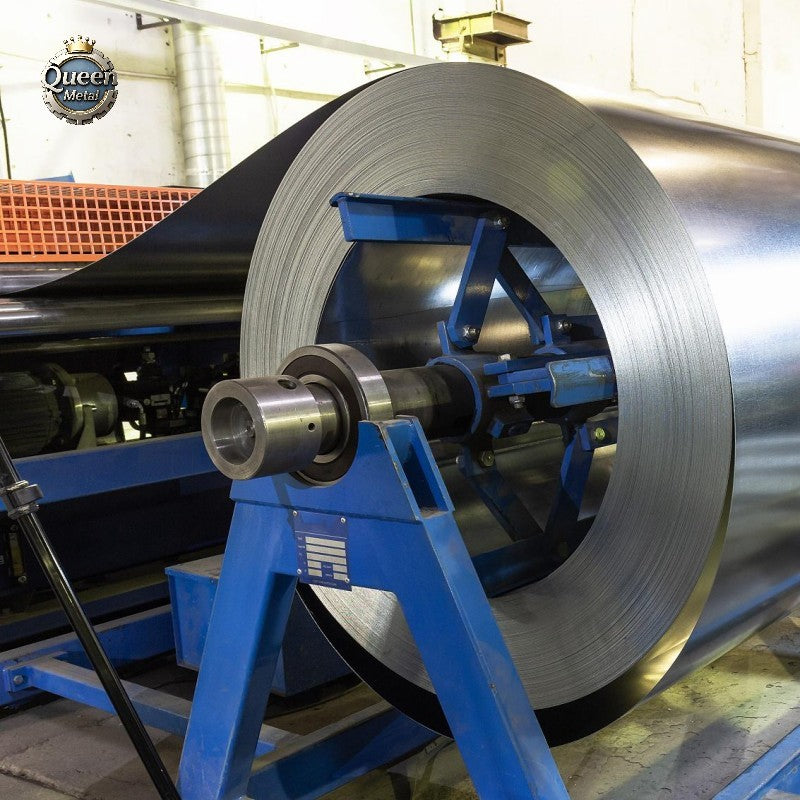

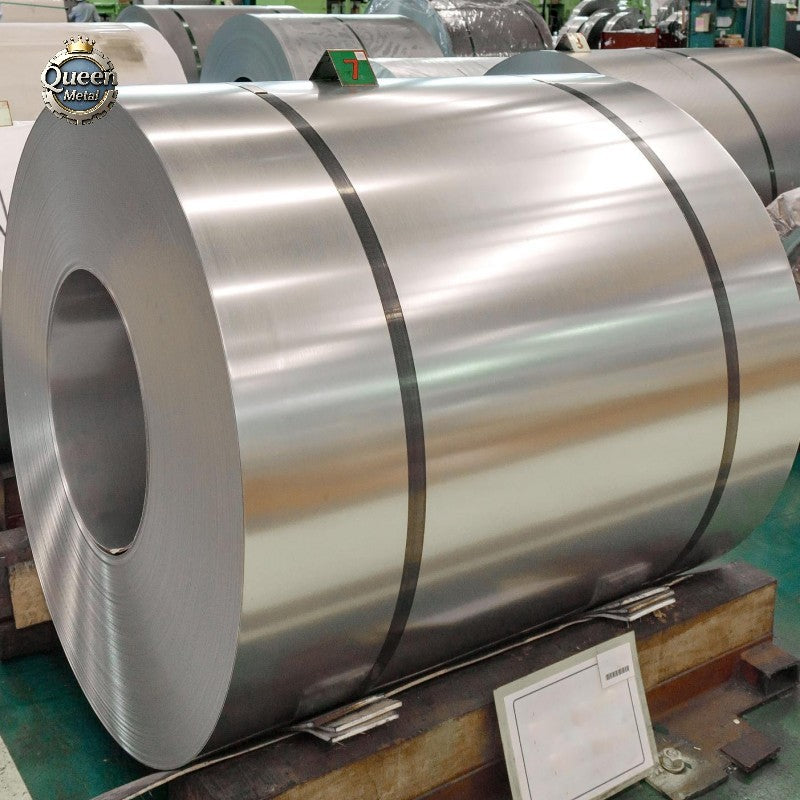

Galvalume Steel Coil (GL Coil) is a high-performance coated steel product with an aluminum-zinc alloy coating, combining the corrosion resistance of zinc with the heat resistance and durability of aluminum. The standard coating composition typically contains 55% aluminum, 43.4% zinc, and 1.6% silicon, providing superior protection compared with traditional galvanized steel in many environments. Queen Metal supplies Galvalume coils with excellent corrosion resistance, heat resistance, surface appearance, and long service life for construction, automotive, solar, and industrial applications. Available in different steel grades, thicknesses, widths, coating weights, and surface finishes. Customized specifications and processing services are available according to customer requirements.
Specifications
| Item | Specification |
|---|---|
| Product Type | Galvalume Steel Coil (GL Coil) |
| Material Type | Aluminum-Zinc Alloy Coated Carbon Steel |
| Coating Composition | 55% Aluminum + 43.4% Zinc + 1.6% Silicon (AZ Coating) |
| Base Material | Cold Rolled Steel |
| Common Grades | DX51D / DX52D / DX53D / S250GD / S280GD / S350GD / ASTM A792 / Customized Grades |
| Standard | EN 10346 / ASTM A792 / JIS G3321 / DIN / GB Standards |
| Manufacturing Process | Hot Dip Aluminum-Zinc Coating Process |
| Thickness | 0.12mm - 6.0mm / Customized |
| Width | 600mm - 1500mm / Customized |
| Coating Weight | AZ30 - AZ200g/m² / Customized |
| Common Coating | AZ50 / AZ100 / AZ150 / AZ165 / Customized |
| Surface Finish | Regular Spangle / Zero Spangle / Mini Spangle / Customized |
| Surface Treatment | Chromated / Oiled / Passivated / Fingerprint Resistant / Customized |
| Edge Condition | Mill Edge / Slit Edge |
| Coil Weight | Standard / Customized according to customer requirements |
| Inner Diameter | 508mm / 610mm / Customized |
| Mechanical Properties | According to applicable standards and customer requirements |
| Processing | Cutting / Slitting / Leveling / Roll Forming / Customized |
| Customization | Steel Grade / Thickness / Width / AZ Coating / Surface Treatment / Coil Weight / Processing |
Need a Customized Solution?
If you cannot find a galvalume steel coil (GL Coil) for your project, please contact Queen Metal. We provide customized solutions based on your required grade, dimensions, standard, surface finish, end treatment, and application.
Send us your specifications, technical requirements, drawings, or parameter files, and our team will provide a suitable quotation and supply solution.
Email: ding@queenmetal.com
Applications & Industries
| Industry | Typical Applications |
|---|---|
| Construction | Roofing sheets, wall panels, building structures and architectural materials |
| Solar Energy | Solar mounting systems, photovoltaic brackets and support structures |
| Automotive | Automotive panels, components and corrosion-resistant parts |
| Home Appliances | Refrigerator panels, appliance housings and exterior components |
| HVAC Systems | Air ducts, ventilation systems and heat-resistant components |
| Industrial Equipment | Machinery covers, equipment structures and fabricated products |
| Agriculture | Greenhouses, agricultural buildings and protective structures |
| Steel Fabrication | Roll forming, profiling and customized steel processing applications |
Quality Assurance & Testing
| Inspection / Testing | Details |
|---|---|
| Chemical Composition Test | Verification of base steel chemical composition according to standards |
| Coating Composition Test | Verification of aluminum-zinc coating composition and coating weight |
| Thickness Inspection | Thickness, width and dimensional accuracy inspection |
| Surface Inspection | Inspection for coating uniformity, scratches, defects and surface quality |
| Mechanical Testing | Tensile strength, yield strength and elongation testing |
| Coating Adhesion Test | Verification of coating bonding performance |
| Flatness Inspection | Checking coil flatness and forming performance |
| Corrosion Resistance Test | Salt spray testing available according to customer requirements |
| Heat Resistance Test | Available according to application requirements |
| MTC | Mill Test Certificate available according to EN 10204 3.1 or customer requirements |
| Third-Party Inspection | SGS / BV or other inspection agencies available upon request |
Packaging & Logistics
| Item | Details |
|---|---|

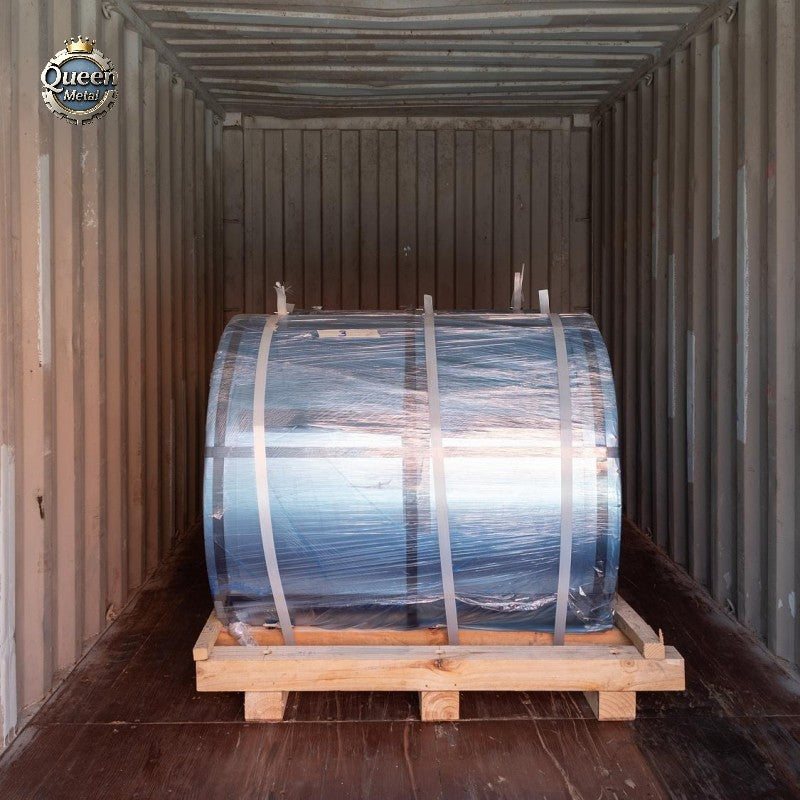

| Packaging Standard | Export-standard Galvalume steel coil packaging |
| Coil Protection | Waterproof paper, protective steel sheets and steel strapping |
| Edge Protection | Protective rings or edge guards to prevent transportation damage |
| Surface Protection | Anti-scratch and moisture protection according to shipping requirements |
| Coil Packaging Type | Vertical eye / Horizontal eye packaging available |
| External Packaging | Waterproof packaging suitable for ocean transportation |
| Shipping Method | Container / Bulk shipment |
| Transportation Protection | Suitable protection for long-distance ocean transportation and heavy steel coils |
| MOQ | According to grade, thickness, width, coating and order requirements |
| Lead Time | Confirmed according to material availability, production schedule and order quantity |
| Customized Logistics | Coil marking, packaging method and shipping arrangements available according to customer requirements |
FAQS
1. What is Galvalume Steel Coil (GL Coil)?
Galvalume Steel Coil, also called GL Coil or Aluzinc Steel Coil, is a steel coil coated with an aluminum-zinc alloy layer to provide enhanced corrosion and heat resistance.
2. What is the difference between GI Coil and GL Coil?
GI Coil uses a pure zinc coating, while GL Coil uses an aluminum-zinc alloy coating containing approximately 55% aluminum, providing better heat resistance and improved corrosion protection in many applications.
3. What coating options are available for Galvalume coils?
Queen Metal supplies different AZ coating weights, including AZ50, AZ100, AZ150, AZ165, AZ200, and customized coating requirements.
4. What are Galvalume steel coils used for?
GL coils are widely used in roofing systems, solar structures, construction materials, automotive components, HVAC systems, appliances, and industrial applications.
5. Can Queen Metal customize Galvalume Steel Coils?
Yes. Queen Metal provides customized GL Coil solutions based on required steel grade, thickness, width, AZ coating weight, surface treatment, coil weight, processing requirements, and application.
