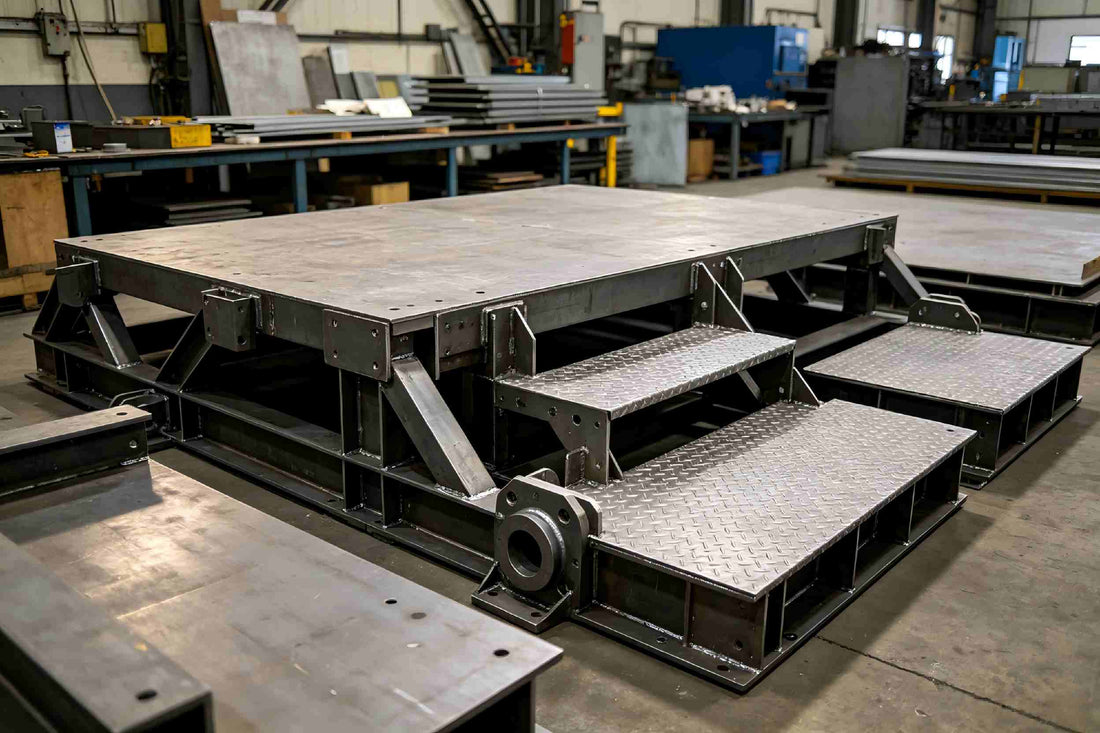

High-Strength Steel Plate Fabrication for Wind Turbine Service Platforms

Application Context and Project Overview

The global transition toward renewable energy has led to a significant increase in the demand for robust and reliable infrastructure within the wind energy sector. Among the critical components of a wind turbine are the internal and external service platforms located within the tower and at the nacelle level. These platforms are essential for providing technicians with safe access for maintenance, inspection, and repair activities. Given the extreme environments in which wind turbines operate—often characterized by high humidity, salt spray in offshore locations, and significant vibration—the materials and fabrication processes used for these platforms must meet stringent safety and durability standards. This project focuses on the fabrication of service platforms using high-strength steel plates, designed to provide a stable work surface while minimizing the overall weight added to the turbine structure. The platforms must be engineered to withstand both static loads from equipment and dynamic loads from personnel movement and tower oscillations, ensuring a safe working environment at heights exceeding one hundred meters.

Technical Requirements and Design Specifications

The design requirements for wind turbine service platforms are multifaceted, involving structural, safety, and logistical considerations. Structurally, the platforms must support a specific load-bearing capacity, typically defined by regional safety codes for industrial walkways and platforms. The use of high-strength steel allows for thinner plate sections, which reduces the dead weight of the platform—a critical factor for the structural integrity and natural frequency of the tower itself. Safety requirements dictate the inclusion of non-slip surfaces, often achieved through perforated patterns, embossed treads, or specialized abrasive coatings. Furthermore, the platforms must be designed with precise cutouts to accommodate ladder systems, power cables, and hydraulic lines that run the length of the tower. Logistically, the platforms are often fabricated in modular sections to facilitate transportation and ease of assembly inside the confined space of the turbine tower. Every dimension must be held to tight tolerances to ensure that the modular sections align perfectly during onsite installation, where room for error is virtually non-existent.

Material Selection and Preparation

For this application, high-strength low-alloy (HSLA) steel is typically selected due to its superior yield strength and toughness compared to standard carbon steel. The specific grade is chosen based on its ability to maintain its mechanical properties in cold climates and its suitability for welding in heavy-duty structural applications. Before fabrication begins, the steel plates undergo a rigorous preparation process. This includes ultrasonic testing to ensure there are no internal defects, laminations, or inclusions within the steel that could lead to structural failure under load. The plates are then blasted to remove mill scale and rust, creating a clean surface for subsequent cutting, welding, and painting operations. Proper material handling is essential throughout this phase to prevent surface damage or contamination that could compromise the integrity of the final product. The traceability of the material is maintained through detailed heat number recording, ensuring that the properties of every plate used in the project are fully documented and verified against the original mill test reports, providing a complete audit trail for the life of the component.

Precision Cutting and Forming Processes

The fabrication of the platform sections involves advanced CNC cutting technologies. Large-format fiber laser cutting or high-definition plasma cutting is employed to produce the intricate shapes and patterns required by the design. Laser cutting is preferred for its ability to produce clean, burr-free edges and highly accurate holes, which minimizes the need for secondary finishing and ensures a perfect fit for mounting hardware. For platforms requiring non-slip features, the CNC equipment is programmed to create a series of precise perforations or embossed patterns across the surface of the plate. Following the cutting process, certain components may undergo CNC press brake forming to create structural flanges or reinforced edges. This forming adds rigidity to the flat plates, allowing them to span longer distances between support brackets without excessive deflection. The accuracy of the bend angles and dimensions is critical to ensuring the modular sections fit together seamlessly during the assembly phase, maintaining the structural continuity of the platform system.

Coordination and Assembly Workflow

Fabricating complex service platforms requires seamless coordination between the engineering, production, and logistics teams. The project begins with the conversion of the customer’s 3D CAD models into flat patterns optimized for nested cutting, which reduces material waste and lowers overall project costs. Throughout the production cycle, a centralized project management system tracks the progress of each component, from raw plate to finished module. Welding of support brackets and reinforcement ribs is performed by certified technicians using standardized welding procedures (WPS) tailored to high-strength steels. The use of custom-designed jigs and fixtures ensures that every welded assembly remains dimensionally stable and consistent, even under the heat of the welding process. Regular coordination meetings are held to align the fabrication schedule with the customer’s tower production timeline, ensuring that the platforms are ready for installation exactly when needed. This integrated approach minimizes bottlenecks and ensures that all technical queries are resolved quickly, maintaining a steady flow of high-quality components.

Quality Control and Inspection Protocols

Quality control is the cornerstone of the fabrication process for safety-critical components like wind turbine platforms. A comprehensive inspection and test plan (ITP) is implemented, covering every stage of production from material intake to final dispatch. Visual inspections are conducted after every cutting and welding operation to identify any surface irregularities or weld defects. For critical structural welds, non-destructive testing (NDT) such as magnetic particle inspection (MPI), liquid penetrant testing (LPT), or ultrasonic testing (UT) is performed to ensure full penetration and the absence of cracks or porosity. Dimensional audits are carried out using precision measuring tools and, in some cases, 3D laser scanners to verify that the final assemblies match the design specifications within the allowed tolerances. The non-slip characteristics and surface flatness are also verified to meet safety standards. Every inspection result is recorded in a final quality dossier, providing the customer with a complete record of the platform's compliance with the project requirements and ensuring long-term accountability.

Surface Treatment and Corrosion Protection

Given the harsh environments in which wind turbines are located, superior corrosion protection is vital for the longevity and safety of the service platforms. After fabrication and initial inspection, the platform sections undergo a multi-stage surface treatment process. This typically involves hot-dip galvanizing, which provides a thick, durable zinc coating that protects the steel through both barrier and sacrificial mechanisms. In some cases, a high-performance epoxy or polyurethane paint system is applied over the galvanized surface (a duplex system) for added protection and to meet specific color requirements for safety visibility. The choice of coating is dictated by the environmental category (e.g., C4 for inland or C5-M for offshore locations). The thickness and adhesion of the coating are carefully measured and documented to ensure they meet the specified standards. This robust protection system ensures that the platforms remain safe and functional for the entire 20-to-25-year design life of the wind turbine, even in the most corrosive marine environments.

Packaging and Delivery Logistics

The final stage of the project involves the careful packaging and transport of the platform modules to the tower manufacturer or the project site. Because the modules are often large and have finished surfaces, they are secured in custom-designed steel or wooden crates that prevent movement and damage during transit. Protective padding is used between stacked sections to prevent scratching of the corrosion-resistant coatings. Each crate is clearly labeled with the project ID, module number, weight, and handling instructions. The delivery logistics are coordinated to match the installation sequence at the turbine site, often requiring 'just-in-time' delivery to manage limited storage space at the assembly facility. Detailed shipping documents, including packing lists, certificates of conformance, and weight reports, accompany each shipment. By managing the logistics with the same precision as the fabrication, the project ensures that the high-strength steel platforms arrive in perfect condition, ready to be integrated into the next generation of wind energy infrastructure, contributing to the global push for clean energy.

FAQS

1. What type of steel is used for wind turbine service platforms?
High-strength structural steel is commonly selected for wind turbine service platforms because it provides a good combination of strength, durability, and weight efficiency. The specific grade depends on the project requirements and applicable standards.

2. Why is precision cutting important for wind turbine service platforms?
Precision cutting ensures that steel components meet the required dimensions and tolerances, which helps improve assembly accuracy, welding quality, and the overall fit of the fabricated platform.

3. What fabrication processes are used for steel service platforms?
Typical processes include steel plate cutting, drilling, bending or forming when required, welding, grinding, dimensional inspection, and surface treatment. The exact process depends on the platform design and specifications.

4. How is the quality of fabricated steel platforms controlled?
Quality control can include material verification, dimensional inspection, weld inspection, surface inspection, and testing according to the project specifications and applicable standards.

5. Can Queen Metal fabricate customized steel platforms for wind turbine projects?
Yes. Queen Metal can support customized steel fabrication based on customer drawings, material specifications, dimensions, tolerances, and inspection requirements for industrial applications.
