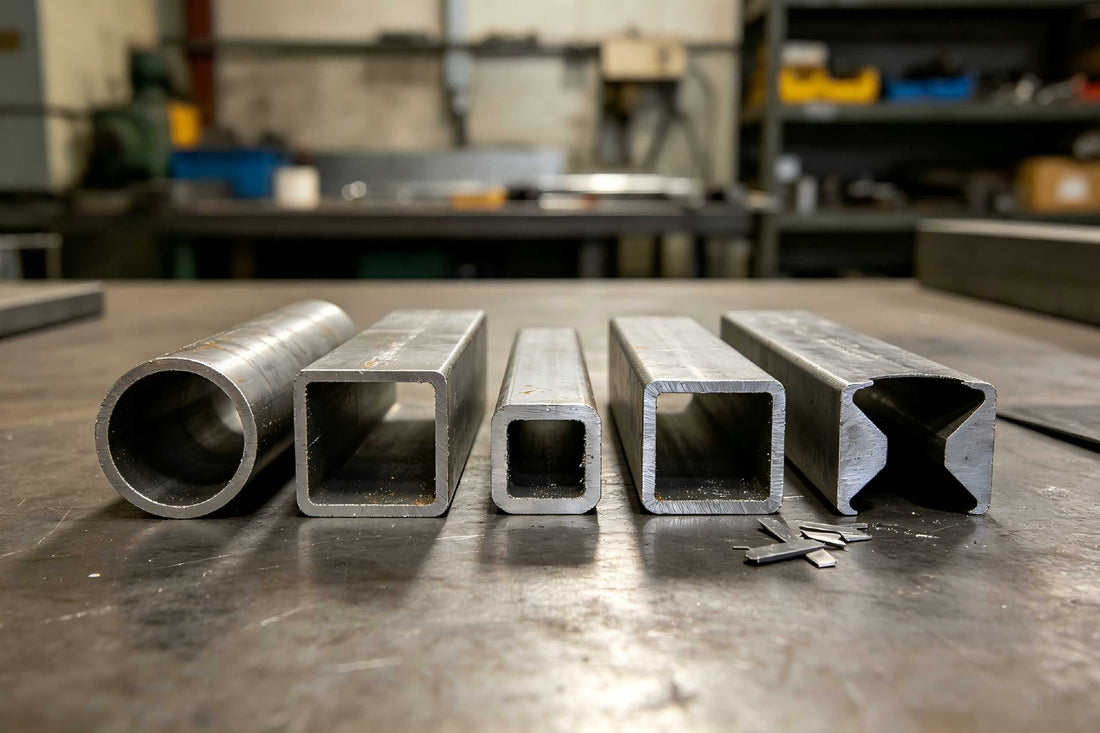

Understanding Hollow Section Profiles: Round, Square, Rectangular, and Special-Shaped Tubes

Introduction to Hollow Structural Sections

Hollow Structural Sections, commonly known as HSS, represent a critical category of metal profiles used extensively in modern engineering, architecture, and industrial manufacturing. These profiles are characterized by their hollow centers and high strength-to-weight ratios, making them an ideal choice for a vast array of structural and decorative applications. The versatility of HSS lies in the variety of shapes available, each offering unique mechanical properties and aesthetic qualities. Understanding the differences between round, square, rectangular, and special-shaped tubes is essential for procurement professionals, engineers, and designers who must select the most appropriate profile for their specific project requirements. The choice of profile impacts not only the structural integrity of the final product but also the ease of fabrication, the cost of materials, and the overall efficiency of the assembly process. As industrial demands become more complex, the role of HSS in providing efficient and sustainable solutions continues to grow across various global sectors.

The Versatility of Round Hollow Sections

Round hollow sections, often referred to as circular hollow sections or simply metal pipes and tubes, are perhaps the most common form of HSS. Their symmetrical cross-section provides uniform strength in all directions, which is a significant advantage in applications where the direction of loading is unpredictable or multidimensional. In structural engineering, round tubes are highly efficient at resisting torsional (twisting) forces, making them a preferred choice for columns, pillars, and support structures in large-scale buildings and bridges. Furthermore, the smooth, curved surface of a round profile minimizes the surface area relative to the volume, which can be beneficial in reducing wind resistance in outdoor structures or facilitating the flow of fluids in piping systems. From an aesthetic standpoint, round profiles offer a clean, modern look that is often utilized in furniture design, handrails, and architectural accents. Their ease of bending without collapsing makes them indispensable for curved architectural designs.

Structural Advantages of Square Hollow Sections

Square hollow sections provide a different set of advantages compared to their round counterparts. The flat surfaces of a square tube make it significantly easier to join and weld to other flat components, which simplifies the fabrication process in construction and machinery manufacturing. From a mechanical perspective, square sections offer excellent resistance to bending and compression along their primary axes. This makes them exceptionally well-suited for use as beams and columns in building frames, trailer chassis, and industrial equipment supports. The geometric stability of the square profile allows for easy calculation of structural loads and simplifies the design of connections, as standard bolts and brackets can be used without the need for complex contouring. Additionally, the uniform wall thickness and precise corners of square HSS contribute to a high level of predictability in manufacturing, ensuring that components fit together with minimal adjustment during high-volume production cycles.

Applications and Benefits of Rectangular Hollow Sections

Rectangular hollow sections are essentially a variation of the square profile, but with unequal side lengths. This asymmetry allows engineers to optimize the material usage by aligning the stronger axis of the tube with the direction of the greatest anticipated load. For instance, in a floor joist or a support beam, a rectangular section can be oriented vertically to provide maximum resistance to downward bending forces while maintaining a relatively low profile. This versatility makes rectangular HSS a staple in the automotive industry, infrastructure projects, and large-scale racking systems. Like square tubes, the flat faces of rectangular sections facilitate easy welding, bolting, and assembly. They are often used in the fabrication of door frames, window frames, and various architectural elements where a linear, geometric appearance is desired. The ability to choose from a wide range of height-to-width ratios allows designers to fine-tune the structural performance and visual impact of the profile for specific load scenarios.

Exploring Special-Shaped Hollow Profiles

Beyond the standard round, square, and rectangular shapes, the industry also utilizes special-shaped hollow profiles to meet highly specific functional or aesthetic needs. These can include oval tubes, D-shaped profiles, triangular sections, and even complex custom geometries designed for unique architectural or mechanical applications. Special-shaped profiles are often used when standard sections cannot provide the necessary clearance, aerodynamics, or visual integration required by a design. For example, oval tubes are frequently employed in gym equipment and furniture for their ergonomic qualities and sleek appearance. Triangular or hexagonal sections might be used in specialized space frames where interlocking geometries provide superior structural rigidity. While these special shapes may require more complex tooling and fabrication processes, they offer unparalleled design freedom and can lead to innovative solutions in sectors ranging from aerospace to high-end interior design where conventional shapes fail to meet the vision.

Material Considerations for Hollow Sections

The performance of any hollow section profile is inextricably linked to the material from which it is manufactured. Carbon steel is the most common choice due to its excellent strength, weldability, and cost-effectiveness. However, for applications requiring corrosion resistance or high-end aesthetics, stainless steel and aluminum are popular alternatives. The choice of material affects the wall thickness required to achieve a certain load-bearing capacity, as well as the overall weight of the structure. For instance, high-strength low-alloy steels allow for thinner walls and lighter structures without sacrificing safety. In procurement, it is vital to match the material grade with the environmental conditions the profile will face, such as exposure to moisture, chemicals, or extreme temperatures. Understanding the interplay between profile shape and material properties, including yield strength and elongation, is the key to successful HSS application in demanding environments.

Manufacturing Processes for HSS

The production of hollow section profiles involves several sophisticated manufacturing techniques. Most HSS are produced through a continuous process where a flat strip of metal is gradually cold-formed into the desired shape and then welded along its length. For round sections, the welding is followed by a sizing process to ensure precise dimensions. Square and rectangular sections are often formed from round tubes that are passed through a series of shaping rollers, a process that requires high precision to maintain corner radii and wall thickness. In some cases, seamless tubes are produced through hot piercing and rolling, offering superior structural uniformity and high-pressure capabilities. The choice of manufacturing process impacts the surface finish, dimensional tolerances, and mechanical properties of the final profile. Designers must be aware of these nuances, as they can influence how the tube behaves during subsequent fabrication steps such as precision bending, laser cutting, or automated drilling.

Dimensional Accuracy and Tolerances in HSS

The dimensional accuracy of a hollow section is critical for ensuring the fit and function of the final assembly. Standard industry tolerances cover aspects such as outside dimensions, wall thickness, straightness, and corner radius. For high-precision applications, tighter tolerances may be specified to allow for seamless integration with other machined components. The control of internal burrs and weld bead height is also important, especially when the hollow center is used to house internal mechanisms or cabling. Procurement specialists must verify that the profiles meet the required standards, such as ASTM A500 or EN 10219, to ensure that the material's performance is predictable and reliable. Consistent dimensions across different production batches are essential for reducing assembly time and minimizing the need for manual adjustments in the shop.

Surface Finish and Protective Coatings

The surface finish of a hollow section profile not only influences its aesthetic appeal but also its longevity. Many HSS are supplied with a light oil coating to prevent rusting during transit, but structural applications often require more robust protection. Hot-dip galvanizing, powder coating, and specialized primers are commonly used to enhance corrosion resistance. For architectural applications, stainless steel HSS can be polished to a mirror finish or brushed for a satin look. The choice of finish must consider the environmental exposure, such as UV radiation or chemical spray, as well as the desired maintenance schedule. Properly treated hollow sections can remain functional and attractive for decades, even in challenging outdoor or industrial settings.

Choosing the Right Profile for Your Project

Selecting the optimal hollow section profile requires a comprehensive evaluation of structural requirements, fabrication constraints, and budgetary considerations. A project that demands high torsional rigidity might lean toward round sections, whereas a project requiring easy integration with flat panels would benefit more from square or rectangular profiles. The environmental context also plays a role; for example, a structure exposed to high winds might require the aerodynamic properties of a round or oval tube. Procurement professionals must also consider the availability of standard sizes and the lead times for custom or special-shaped profiles. By carefully weighing the pros and cons of each shape and material combination, engineers can ensure that their choice of HSS contributes to a safe, efficient, and cost-effective outcome. The diversity of hollow section profiles ensures that there is a solution for almost every structural challenge in the modern world.

FAQS

1. What are the main types of hollow section tubes?
The main types are round, square, rectangular, and special-shaped hollow sections. Each profile offers different structural properties, load distribution, and application advantages.

2. What is the difference between round and square hollow sections?
Round hollow sections distribute loads efficiently in multiple directions and offer good resistance to torsion, while square hollow sections provide flat surfaces that are easier to connect, weld, and fabricate.

3. Where are rectangular hollow sections commonly used?
Rectangular hollow sections are widely used in structural frames, machinery, construction equipment, transportation systems, and architectural structures where directional strength and flat mounting surfaces are important.

4. How should I choose the right hollow section profile?
The choice depends on load requirements, structural design, available space, connection method, fabrication needs, material grade, and required dimensions. Wall thickness and section size should also be considered.

5. Can hollow section tubes be customized for specific applications?
Yes. Hollow sections can be supplied in different materials, dimensions, wall thicknesses, lengths, and special profiles to meet specific engineering and fabrication requirements.
