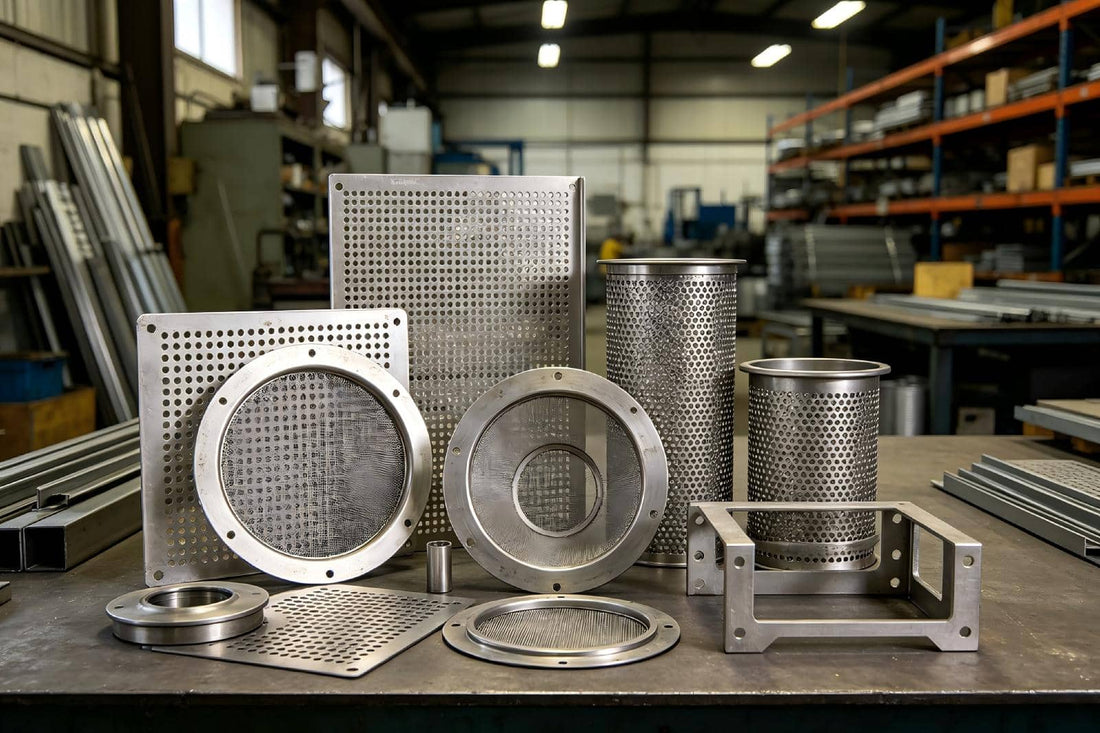

Stainless Steel Perforated Plate Components for Industrial Filtration Equipment

Industrial filtration is a critical process in countless sectors, including chemical processing, food and beverage production, pharmaceuticals, and water treatment. The efficiency and reliability of these filtration systems depend heavily on the quality of their internal components, particularly the perforated plates that serve as the primary filter media or support structures. Stainless steel is the material of choice for these components due to its exceptional corrosion resistance, strength, and ease of cleaning. This project overview explores the design and fabrication of stainless steel perforated plate components, detailing the technical considerations and manufacturing processes required to meet the demanding needs of modern industrial filtration equipment.

The Vital Role of Perforated Plates in Filtration

Perforated plates are used in filtration systems to separate solids from liquids or gases, provide structural support for finer filter meshes, or distribute flow evenly across a treatment bed. The performance of these plates is defined by their 'open area'—the percentage of the plate that consists of holes—and the specific pattern and size of those holes. A well-designed perforated plate must balance the need for high flow rates with the requirement for mechanical strength to withstand the pressures and stresses of the filtration process. In many industrial applications, these plates are subjected to continuous flows, chemical exposure, and periodic cleaning cycles, making the choice of material and precision of fabrication essential for long-term operational success.

Material Selection: Why Stainless Steel Dominates

In the world of industrial filtration, stainless steel stands out for its versatility and durability. Grades such as 304 and 316 are most commonly used, with 316 offering superior resistance to pitting and crevice corrosion in environments containing chlorides or acids. Stainless steel's inherent strength allows for the fabrication of plates that can handle high differential pressures without deforming, which is crucial for maintaining the integrity of the filtration process. Furthermore, its smooth, non-porous surface is easy to sanitize, making it ideal for applications in the food, beverage, and pharmaceutical industries where hygiene and contamination control are paramount. The ability to recycle stainless steel also aligns with the growing emphasis on sustainable manufacturing practices across all industrial sectors.

Engineering Design and Perforation Patterns

The engineering of perforated plate components begins with a detailed analysis of the filtration requirements. Designers must select the optimal hole shape—typically round, square, or slotted—and the arrangement of those holes, such as staggered or straight patterns. The size of the perforations and the pitch (the distance between hole centers) are carefully calculated to achieve the desired flow characteristics and filtration efficiency. Advanced CAD software is used to model the plates and simulate how they will perform under various pressure and flow conditions. This design phase also includes specifying the thickness of the plate and the dimensions of any non-perforated margins, which are often required for mounting or welding the plate into the filtration vessel.

Advanced Manufacturing Techniques for Precision Perforation

The fabrication of perforated plates requires specialized machinery capable of punching or cutting holes with extreme accuracy. High-speed CNC punching presses are frequently used for large-scale production, offering high throughput and consistent hole quality. For more complex patterns, thicker materials, or very small hole diameters, laser cutting or waterjet cutting may be preferred. These methods provide the flexibility to create intricate designs without the need for expensive custom tooling. Regardless of the method used, maintaining tight tolerances on hole size, spacing, and plate flatness is essential to ensure that the final component fits perfectly within the filtration equipment and performs according to the design specifications.

Forming and Finishing of Filtration Components

Once the perforation process is complete, the plates often undergo further fabrication steps such as bending, rolling, or welding to create the final component shape, such as cylindrical filter baskets or conical strainers. Stainless steel's excellent formability allows it to be shaped into complex geometries without compromising its structural integrity. Following forming, the components are typically subjected to finishing processes to improve their corrosion resistance and surface quality. Passivation is a common treatment that removes surface contaminants and enhances the protective chromium oxide layer on the stainless steel. Electropolishing may also be used to achieve an ultra-smooth, mirror-like finish that further reduces the risk of particle adhesion and facilitates easier cleaning.

Quality Control and Performance Verification

Rigorous quality control is fundamental to the fabrication of filtration components. Each plate and assembly must be inspected for dimensional accuracy, hole uniformity, and the absence of burrs or sharp edges that could damage other filter media or trap contaminants. Non-destructive testing methods, such as liquid penetrant inspection, may be used to verify the integrity of welds. For critical applications, flow testing and pressure drop measurements can be performed to ensure that the components meet the calculated performance criteria. This meticulous attention to detail at every stage of the manufacturing process is what ensures that the final filtration equipment operates reliably and efficiently throughout its service life.

Solving Challenges in Aggressive Filtration Environments

Industrial filtration often takes place in extremely challenging environments, involving abrasive slurries, high temperatures, or highly corrosive chemicals. Fabricators must select specialized stainless steel alloys or apply protective coatings to extend the life of the perforated plates in these conditions. For example, duplex stainless steels might be used for their combined high strength and excellent resistance to stress corrosion cracking. The design of the perforations themselves can also be optimized to minimize the effects of erosion or clogging, such as by using tapered holes that are wider on the discharge side. By understanding the specific challenges of each application, fabricators can develop custom solutions that maximize the uptime and performance of the filtration system.

Integration and Customization for Specialized Equipment

One of the key strengths of custom fabrication is the ability to tailor perforated plate components to the exact needs of specialized filtration equipment. This often involves creating unique mounting systems, integrating handles or lifting lugs for easier maintenance, or incorporating reinforcing ribs to handle extreme loads. Fabricators work closely with equipment manufacturers and end-users to understand the operational context and identify opportunities for optimization. This collaborative approach ensures that the perforated components are not just parts, but integral solutions that contribute to the overall success of the filtration process. The ability to produce small batches or one-off prototypes also allows for rapid innovation and the testing of new filtration concepts.

Sustainable Manufacturing and Material Efficiency

Sustainability is an increasingly important factor in the fabrication of industrial components. The use of stainless steel is inherently sustainable due to its long life and high recyclability. During the perforation process, the material removed from the holes—the 'slugs'—is collected and sent for recycling, minimizing waste. Advanced nesting techniques and precision cutting methods further optimize material usage, reducing the environmental footprint of production. Furthermore, by creating highly efficient filtration components, fabricators help their clients reduce energy consumption and minimize the volume of waste generated by their processes. This commitment to sustainability is becoming a key differentiator for fabricators in the global industrial market.

Future Trends in Perforated Plate Technology

The field of perforated plate fabrication is continuously evolving, driven by advancements in materials science and manufacturing technology. The development of new stainless steel alloys with even greater corrosion resistance and strength is expanding the possibilities for filtration in extreme environments. Additive manufacturing, or 3D printing, is also beginning to find applications in the creation of highly complex filtration structures that would be impossible to fabricate using traditional methods. Additionally, the integration of 'smart' sensors into filtration components allows for real-time monitoring of pressure drops and flow rates, enabling predictive maintenance and further optimizing the filtration process. These innovations are paving the way for the next generation of high-performance industrial filtration equipment.

Conclusion: Engineering Excellence in Filtration

The fabrication of stainless steel perforated plate components is a specialized field that combines engineering expertise with advanced manufacturing capabilities. These components are the unsung heroes of industrial filtration, providing the essential separation and support functions that keep critical processes running smoothly. By focusing on material quality, precision fabrication, and innovative design, fabricators can deliver solutions that meet the highest standards of performance and reliability. As industries continue to demand more efficient and sustainable filtration processes, the role of high-quality stainless steel components will only become more vital, underscoring the importance of engineering excellence in every perforated plate produced.
