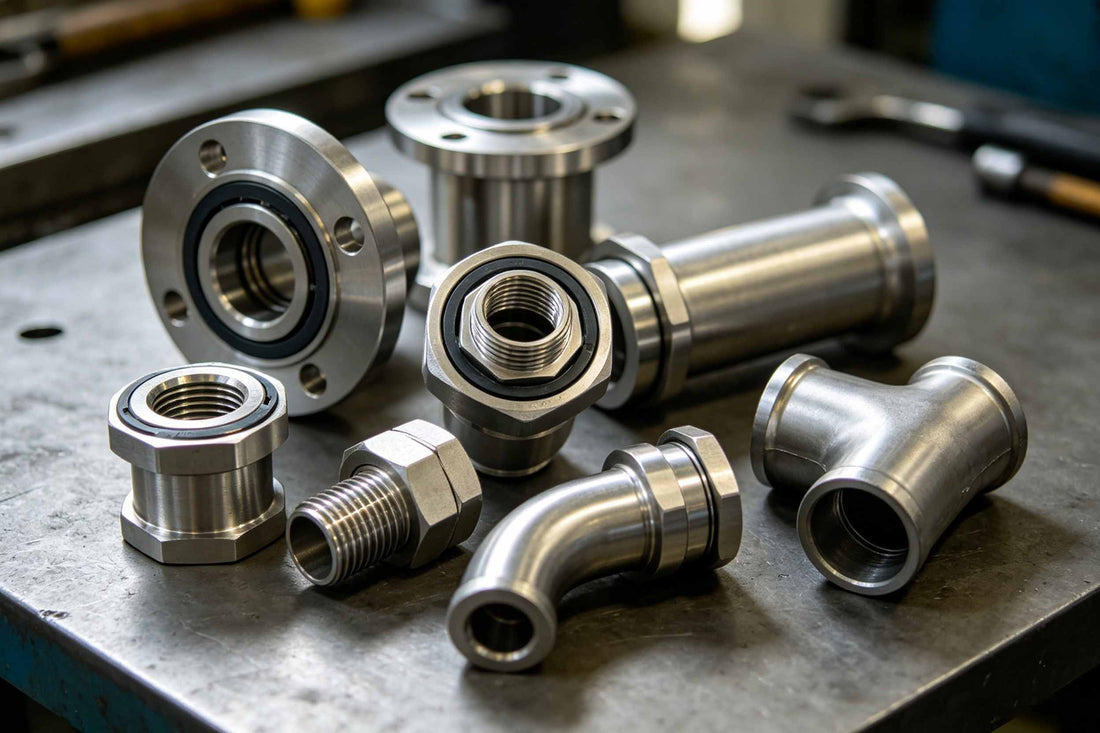

Precision-Machined Stainless Steel Couplings for Fluid Transfer Equipment

Application Context and Project Overview

In the world of fluid handling and process engineering, the integrity of connections is paramount. Precision-machined stainless steel couplings serve as the critical interface between pipes, hoses, and equipment in systems that transport everything from high-pressure hydraulic fluids and aggressive chemicals to food products and pharmaceuticals. These components must ensure a leak-proof seal under varying pressures, extreme temperatures, and mechanical stresses. The selection of stainless steel as the primary material is driven by the need for high strength, excellent corrosion resistance, and the ability to maintain hygienic standards in sensitive applications. This project describes the standardized manufacturing approach for a range of high-performance couplings, focusing on the technical rigor required to produce components that meet the demanding needs of fluid transfer equipment manufacturers worldwide. The goal is to produce a coupling that offers long-term reliability, ease of maintenance, and safety in diverse industrial environments where failure is not an option.

Technical Requirements and Material Standards

The technical specifications for fluid transfer couplings are defined by the pressure ratings, temperature ranges, and chemical compatibility of the fluids being handled. Couplings are typically designed to meet or exceed international standards such as ASME, ISO, or DIN, depending on the end-user's requirements and the specific industrial sector. A key requirement is the precision of the threads and sealing surfaces; even the slightest deviation can lead to catastrophic leaks or system failure. For this project, Grade 316/316L stainless steel is the preferred material due to its enhanced resistance to pitting and crevice corrosion in chloride-rich environments. The material must be sourced from reputable mills with full certification to ensure the correct chemical composition and mechanical properties. The design also incorporates features such as knurled surfaces for better grip during manual assembly and integrated hexagonal sections for easy tightening with standard tools, ensuring that the couplings can be installed quickly and securely in the field.

CNC Machining and Precision Turning

The heart of the manufacturing process lies in high-precision CNC turning and milling. Starting from solid stainless steel bar stock or high-quality forgings, each coupling is machined in a single setup whenever possible to ensure perfect concentricity between the internal and external features. Advanced CNC lathes equipped with live tooling are used to perform complex operations such as thread cutting, boring, and face grooving with extreme accuracy. The threading process is monitored closely, with specialized gauges used to verify the pitch, angle, and depth of the threads to ensure a perfect fit with mating components. The use of high-performance carbide tooling with optimized coatings allows for the efficient removal of material while maintaining a superior surface finish on critical sealing faces. The precision of the CNC equipment ensures that every coupling in a production run is dimensionally identical, facilitating complete interchangeability in the field and reducing the risk of assembly errors during system installation.

Material Integrity and Traceability

Maintaining the integrity of the stainless steel throughout the manufacturing process is vital. This begins with the verification of the raw material against the provided mill test reports (MTRs) to ensure that it meets all structural and chemical requirements. Each batch of material is assigned a unique internal tracking number that follows the parts through every stage of production, from the initial saw cut to the final packaging. This traceability ensures that if any issues arise, the origin of the material can be quickly identified and addressed. During machining, the use of appropriate coolants and cutting parameters prevents the material from overheating, which could alter its metallurgical structure or reduce its corrosion resistance. The finished parts undergo a passivation process, which involves a chemical treatment to remove free iron from the surface and enhance the protective chromium oxide layer. This step is essential for ensuring the long-term durability and cleanliness of the stainless steel couplings, particularly in food and medical applications.

Coordination and Technical Documentation

Successful production of precision couplings requires close coordination between the engineering team, the CNC programmers, and the quality assurance department. The project begins with a thorough review of the technical drawings and specifications to identify any potential manufacturing challenges or opportunities for design optimization. Detailed setup sheets and inspection plans are created for each part number to ensure consistency across different production shifts and batches. Any technical clarifications or design modifications are documented through a formal change order process to maintain a clear record of the engineering intent. This systematic approach ensures that all stakeholders are aligned and that the final product precisely meets the customer's expectations. Furthermore, a comprehensive documentation package is compiled for every project, including material certifications, dimensional inspection reports, and certificates of conformance. This transparency provides the equipment manufacturer with the confidence that the components they are integrating into their systems are of the highest quality and fully compliant with industry standards.

Quality Checks and Performance Testing

Rigorous quality control is embedded into every step of the coupling manufacturing process. Operators perform regular in-process inspections using calibrated micrometers, calipers, and thread gauges to ensure that dimensions remain within the specified tolerances throughout the machining cycle. Once machining is complete, the couplings undergo a final inspection by the quality control team. This includes a 100% visual check for surface defects, burrs, or machining marks that could compromise the seal. Critical dimensions are verified using a Coordinate Measuring Machine (CMM) for complex geometries that require high-level spatial accuracy. To ensure the functional performance of the couplings, representative samples from each batch may undergo pressure testing. This involves subjecting the coupling to a hydrostatic test at a multiple of its rated working pressure to verify the integrity of the seals and the strength of the body under load. Only after successfully passing all inspections and tests are the parts released for final finishing and packaging, ensuring that only perfect components reach the customer.

Cleaning, Finishing, and Passivation

The final stages of production focus on the cleanliness and surface quality of the couplings. Following machining and inspection, the parts are thoroughly cleaned in an automated ultrasonic bath to remove all traces of cutting oils, metal chips, and microscopic contaminants. This is particularly important for couplings used in high-purity applications like food, pharmaceutical, or semiconductor processing where even the smallest impurity can have significant consequences. As previously mentioned, the parts then undergo a passivation process according to standards such as ASTM A967 or AMS 2700. This process not only improves corrosion resistance but also ensures that the surface is chemically passive and stable. Depending on the customer's requirements, the couplings may receive additional surface treatments such as electropolishing for an ultra-smooth finish or laser marking for permanent identification, branding, and traceability. The result is a professional, high-quality component that is ready for immediate installation in a high-performance fluid system, reflecting the technical excellence of the fabrication process.

Packaging, Delivery, and Site Integration

To protect the precision threads and sealing surfaces, each stainless steel coupling is individually packaged to prevent contact with other metal parts. Typically, this involves placing the coupling in a sealed, heavy-duty plastic bag and then into a sturdy, cushioned box to prevent damage during shipping and handling. For large orders, the boxes are palletized and secured with shrink wrap and protective corner boards. Each package is clearly labeled with the part number, quantity, batch traceability information, and handling instructions. The delivery schedule is coordinated with the customer’s production planning to ensure a smooth supply chain and prevent delays in their assembly process. Upon arrival at the customer's facility, the couplings are ready for immediate integration into fluid transfer assemblies. The precise dimensions and high-quality finish ensure that the assembly process is efficient and that the final equipment performs reliably from day one. By focusing on precision at every stage, from material selection to final packaging, the project delivers a solution that meets the highest standards of industrial fluid handling and safety.

FAQS

1. What are stainless steel couplings used for in fluid transfer equipment?
Stainless steel couplings are used to connect pipes, tubes, hoses, or other fluid-transfer components. They are suitable for industrial systems where corrosion resistance, mechanical strength, and reliable connections are required.

2. Why is stainless steel suitable for high-pressure fluid transfer systems?
Stainless steel provides a combination of high mechanical strength, corrosion resistance, and durability, making it suitable for demanding fluid transfer applications. The appropriate material grade and coupling design should be selected according to the operating pressure, temperature, and fluid.

3. How are precision stainless steel couplings CNC machined?
CNC machining uses controlled cutting operations to produce coupling threads, bores, connection surfaces, and other critical dimensions. Machining parameters and inspection procedures are adjusted according to the required tolerances and component design.

4. How are stainless steel couplings tested for quality?
Quality control may include dimensional inspection, material verification, visual inspection, thread inspection, and pressure or leak testing when required by the application or customer specification. Testing requirements should be defined according to the working conditions and applicable standards.

5. Can stainless steel couplings be customized for specific fluid transfer systems?
Yes. Precision-machined stainless steel couplings can be customized according to drawings, connection type, dimensions, material grade, threads, tolerances, surface finish, and testing requirements. This allows the coupling to be matched to specific fluid transfer equipment and industrial applications.
