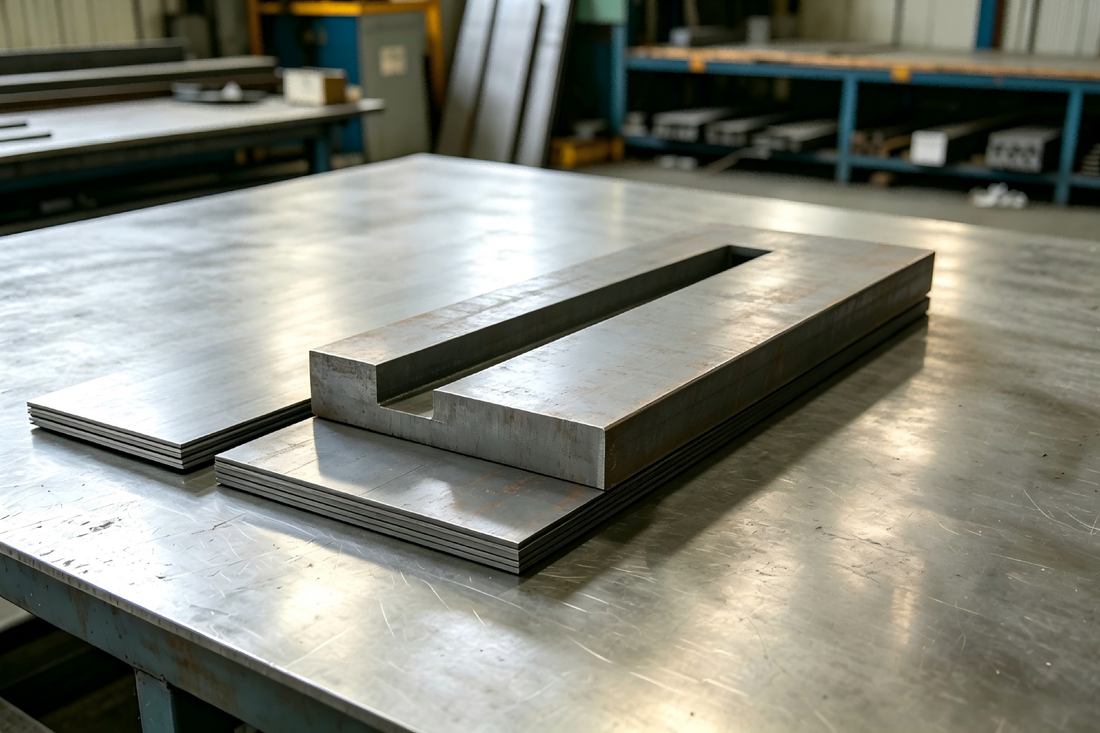

How to Choose Steel Plate Thickness for Fabricated Industrial Equipment

Selecting the appropriate steel plate thickness is a fundamental decision in the fabrication of industrial equipment, influencing everything from structural integrity and safety to manufacturing costs and logistical feasibility. In the realm of heavy-duty engineering, where machinery often operates under extreme pressure, temperature, and mechanical stress, the choice of thickness is never arbitrary. It requires a meticulous balance of engineering principles, material science, and economic considerations. This blog post explores the critical factors that engineers and fabricators must evaluate to determine the optimal steel plate thickness for their specific industrial applications, ensuring that the final product is not only durable and reliable but also cost-effective and efficient to produce.

The Foundation of Structural Integrity and Safety

The primary function of any industrial component is to withstand the forces it encounters during operation without failing. Structural integrity is directly linked to the thickness of the steel plates used. Thicker plates generally offer greater resistance to bending, torsion, and shearing forces. When designing pressure vessels, storage tanks, or heavy machinery frames, engineers use complex calculations to determine the minimum thickness required to prevent deformation or catastrophic failure. Safety factors are always integrated into these calculations to account for potential variations in material properties, unexpected loads, or environmental conditions. Choosing a thickness that is too low can lead to structural instability, while an excessively high thickness adds unnecessary weight and cost.

Understanding Material Properties and Their Relationship to Thickness

Different grades of steel exhibit varying mechanical properties, such as tensile strength, yield strength, and ductility, which significantly impact how thickness should be selected. For instance, high-strength low-alloy (HSLA) steels can often achieve the same structural performance as standard carbon steel but at a reduced thickness. This reduction in thickness can lead to significant weight savings, which is particularly beneficial for mobile industrial equipment like cranes or transport trailers. However, thinner, higher-strength plates might be more prone to buckling under compressive loads compared to thicker plates made from lower-grade steel. Therefore, the relationship between material grade and thickness must be analyzed holistically to ensure the component performs as intended under all operational scenarios.

The Impact of Load Distribution and Stress Concentration

Industrial equipment rarely experiences uniform loads. Stress concentrations often occur at joints, corners, and areas where components are attached. The thickness of the steel plate must be sufficient to distribute these concentrated stresses across a larger area to prevent localized yielding or fatigue cracking. In many cases, designers might use localized reinforcements, such as gussets or pads, but increasing the overall plate thickness in critical regions is often a simpler and more robust solution. Analyzing how loads travel through the structure using finite element analysis (FEA) allows engineers to identify high-stress zones and adjust thickness accordingly, optimizing the material distribution for maximum performance.

Environmental and Corrosion Considerations

Environmental factors play a significant role in determining the required steel plate thickness, especially in industries where equipment is exposed to corrosive substances or extreme temperatures. Corrosion progressively thins the steel over time, reducing its load-bearing capacity. To combat this, a 'corrosion allowance' is typically added to the minimum calculated structural thickness. This additional thickness ensures that even after years of surface oxidation or chemical erosion, the remaining material will still be thick enough to support the intended loads safely. In highly aggressive environments, such as chemical processing plants or offshore platforms, the corrosion allowance might be substantial, significantly increasing the initial thickness of the plates used.

Balancing Weight, Cost, and Manufacturing Efficiency

While structural requirements are paramount, the economic aspects of fabrication cannot be ignored. Steel plate is sold by weight, so every additional millimeter of thickness directly increases the raw material cost. Furthermore, thicker plates are more challenging and expensive to process. They require more energy for cutting, whether using plasma, laser, or oxy-fuel methods. They also demand more complex welding procedures, often involving multiple passes and higher heat inputs, which can increase the risk of thermal distortion and residual stress. Logistics also become more complicated, as heavier components require more robust handling equipment and incur higher shipping costs. Finding the 'sweet spot' where thickness provides adequate safety and longevity without inflating production costs is the hallmark of successful industrial design.

Manufacturing Constraints: Welding and Forming

The capabilities of the fabrication facility often dictate the practical limits of steel plate thickness. For example, bending machines and rolling equipment have maximum capacities for thickness and width. If a design specifies a plate that exceeds these capacities, the fabricator may need to outsource the work or modify the design, leading to delays and increased costs. Welding is another critical consideration; as plate thickness increases, the volume of weld metal required grows exponentially. This not only increases labor and material costs but also necessitates stricter quality control measures, such as preheating and post-weld heat treatment, to prevent cracking and ensure the integrity of the joints.

The Role of Industry Standards and Regulations

Most industrial equipment must comply with specific codes and standards, such as those set by the American Society of Mechanical Engineers (ASME), the American Welding Society (AWS), or international standards like ISO. These regulations often provide prescriptive formulas and tables for determining minimum plate thicknesses based on operating pressures, temperatures, and material types. Adhering to these standards is not just a matter of best practice; it is often a legal and insurance requirement. Engineers must ensure that their thickness choices meet or exceed these regulatory minimums while also satisfying their own internal design criteria and safety margins.

Impact of Dynamic Loading and Fatigue

Beyond static loads, many industrial components are subjected to dynamic loading, which includes vibrations, shocks, and cyclic movements. These conditions can lead to material fatigue, where microscopic cracks develop and propagate over time, even if the applied stress is well below the yield strength of the steel. Plate thickness plays a vital role in mitigating fatigue risks. A thicker plate generally has a higher moment of inertia, which reduces the amplitude of vibrations and lowers the cyclic stress levels within the material. In equipment like rotating machinery bases or conveyor supports, selecting a thickness that accounts for these dynamic effects is essential for long-term durability.

Optimizing for Lifecycle Performance and Maintenance

The decision on steel plate thickness should also consider the long-term maintenance requirements and the expected lifespan of the equipment. Components that are difficult to access or replace might benefit from a more conservative thickness choice to extend their service life and reduce the frequency of repairs. Conversely, for equipment with a shorter planned lifecycle or where parts are easily replaceable, a thinner, more economical plate might be justified. Regular inspections can monitor the actual thinning of plates in service, allowing for data-driven decisions on when to repair or replace components before they reach their critical minimum thickness.

Innovative Design Strategies to Reduce Thickness

Modern engineering software and advanced manufacturing techniques have opened up new ways to optimize thickness. Topology optimization, for instance, allows for the removal of material from low-stress areas while maintaining strength in high-stress zones. Using ribbed structures or corrugated designs can provide significant stiffness and strength with relatively thin plates compared to a single thick, flat plate. These strategies allow for the creation of lighter, more efficient equipment without compromising safety or performance, reflecting the ongoing drive for innovation in industrial fabrication.

Conclusion and Final Considerations

Choosing the right steel plate thickness for industrial equipment is a complex task that demands a deep understanding of engineering requirements, material properties, and manufacturing processes. By carefully weighing the factors of structural integrity, environmental resistance, cost, and manufacturability, engineers can design equipment that is both robust and efficient. While formulas and standards provide a necessary baseline, the experience and judgment of fabricators and designers remain invaluable in navigating the trade-offs inherent in thickness selection. Ultimately, a well-considered choice of thickness is the foundation upon which safe, reliable, and high-performing industrial machinery is built, ensuring long-term success in the most demanding operational environments.
