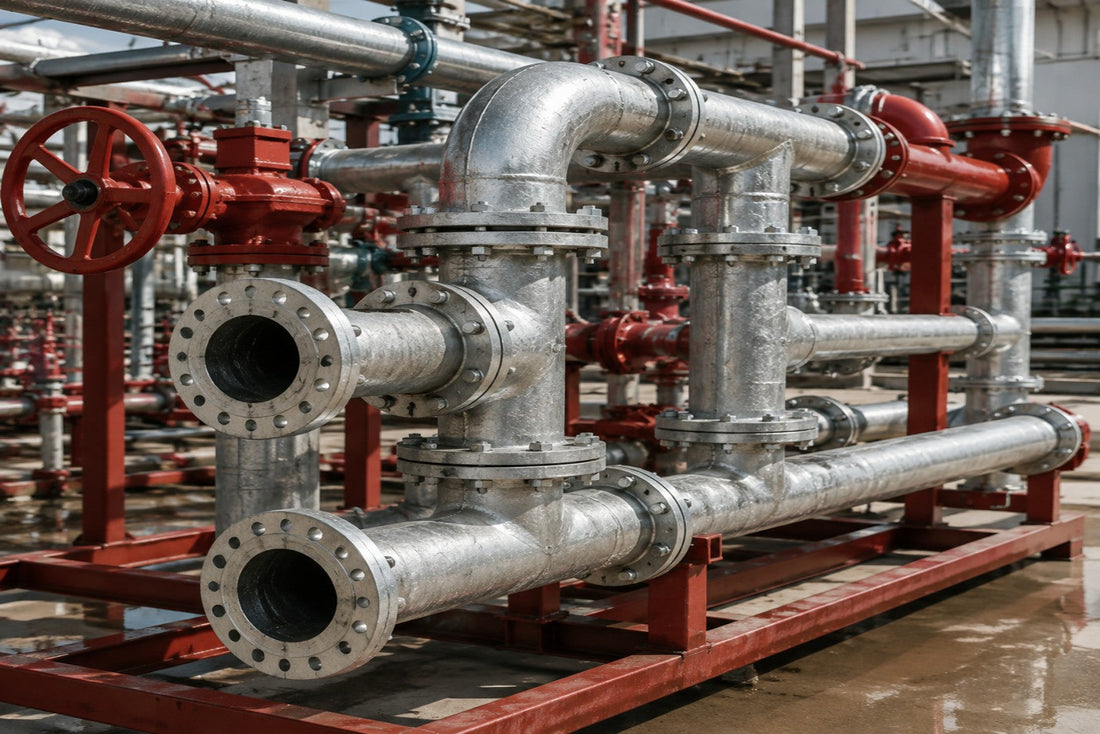

Custom Galvanized Pipe Spools for Outdoor Fire Protection Networks

The implementation of a robust fire protection network is a critical requirement for any large-scale industrial or commercial facility, particularly those with extensive outdoor infrastructures such as tank farms, warehouses, and energy production sites. At the heart of these networks are pipe spools—pre-fabricated assemblies of pipes and components that must be designed to withstand high-pressure flows and harsh environmental conditions. This project overview discusses the technical challenges and fabrication solutions involved in creating custom galvanized pipe spools tailored for outdoor fire protection networks, highlighting the importance of material selection, precision engineering, and quality control in ensuring life-saving reliability.

Strategic Engineering for Fire Protection Infrastructure

Designing pipe spools for fire protection requires a deep understanding of hydraulic principles and structural engineering. These systems must remain dormant for long periods but must activate instantly and perform flawlessly under extreme pressure when a fire is detected. The engineering process begins with a detailed analysis of the network layout, identifying the optimal locations for hydrants, monitors, and branch lines. Custom spools are designed to minimize the number of field welds, which reduces installation time and the potential for leaks. Each spool is engineered to handle specific flow rates and pressure ratings, ensuring that the water or foam suppressant reaches the fire with the necessary force and volume to be effective.

Material Selection: The Advantages of Galvanized Steel

For outdoor fire protection networks, the choice of material is primarily driven by the need for corrosion resistance and structural strength. Galvanized steel is the industry standard for these applications due to its protective zinc coating, which acts as a sacrificial layer against atmospheric corrosion. In outdoor environments, pipes are exposed to rain, humidity, and temperature fluctuations that can rapidly degrade unprotected carbon steel. The hot-dip galvanizing process provides a thick, durable coating that protects both the interior and exterior of the pipe, preventing the buildup of rust and scale that could clog fire nozzles or weaken the pipe walls. This longevity is essential for systems that are expected to serve for decades with minimal maintenance.

Precision Fabrication Processes for Custom Spools

The fabrication of custom pipe spools involves several critical stages, each requiring high levels of precision. It starts with the cutting of pipes to exact lengths and the preparation of pipe ends for welding, typically through beveling. For fire protection systems, flanges, elbows, and branch connections are welded to the main pipe sections according to the engineering drawings. Advanced welding techniques, such as Gas Metal Arc Welding (GMAW) or Shielded Metal Arc Welding (SMAW), are employed to create strong, leak-proof joints. The use of jigs and fixtures during fabrication ensures that the spools maintain their dimensional accuracy, which is crucial for seamless assembly at the project site. Following welding, the spools undergo a thorough cleaning process before being sent for hot-dip galvanizing.

Hydraulic Integrity and Pressure Testing

Ensuring the hydraulic integrity of each pipe spool is a non-negotiable step in the fabrication process. Before being approved for installation, the spools must undergo rigorous pressure testing, typically using water (hydrostatic testing). These tests subject the spools to pressures significantly higher than their maximum operating pressure to verify that all welds and connections are sound. Any sign of leakage or deformation is cause for rejection and repair. For fire protection networks, where the system must handle the sudden surge of water from high-capacity pumps, this testing provides the necessary assurance that the network will hold together under the most demanding conditions.

Integration with Fire Suppression Systems

Pipe spools for outdoor networks must be designed to integrate perfectly with other components of the fire suppression system, such as valves, pumps, and monitoring equipment. This requires careful coordination between the spool fabricators and the system designers. Custom spools often include integrated mounting brackets for instrumentation or specialized outlets for fire monitors and hose reels. The design must also account for the thermal expansion and contraction that occurs in outdoor environments, using expansion joints or flexible couplings where necessary to prevent stress on the piping network. This integrated approach ensures that the entire fire protection infrastructure functions as a cohesive unit.

Logistical Planning and Site Assembly

The pre-fabrication of pipe spools offers significant logistical advantages, especially for large-scale outdoor projects. By fabricating the components in a controlled factory environment, the amount of labor and equipment needed at the construction site is greatly reduced. The spools are typically labeled and shipped in a specific sequence to facilitate efficient assembly. Once on-site, the spools are connected using bolted flanges or mechanical couplings, which are much faster and safer to install in the field than traditional welding. This streamlined assembly process is particularly beneficial in remote locations or where on-site hot work is restricted due to safety concerns.

Corrosion Protection and Coating Integrity

Maintaining the integrity of the galvanized coating throughout the fabrication and installation process is vital for the long-term performance of the fire protection network. During welding, the zinc coating is removed from the immediate area of the joint, and it must be meticulously restored after the weld is completed. This is often done using specialized zinc-rich paints or cold galvanizing sprays that provide comparable protection to the original hot-dip finish. Furthermore, the handling and transport of the spools must be done carefully to avoid mechanical damage to the coating. Any scratches or gouges are touched up immediately to prevent localized corrosion from taking hold and potentially compromising the entire section of pipe.

Sustainable Practices in Pipe Spool Fabrication

Modern fabrication processes are increasingly incorporating sustainable practices to reduce environmental impact. Galvanized steel is a highly sustainable choice, as it is 100% recyclable and the galvanizing process itself is relatively efficient. In the fabrication shop, material waste is minimized through advanced nesting software that optimizes the cutting of pipe sections. Energy-efficient welding machines and local exhaust ventilation systems help reduce the carbon footprint and improve the working environment for the fabricators. By focusing on durability and longevity, the use of galvanized pipe spools also reduces the need for frequent replacements, contributing to the overall sustainability of the fire protection infrastructure.

Technological Advancements in Fabrication and Design

The field of pipe spool fabrication is being transformed by new technologies that enhance accuracy and efficiency. Building Information Modeling (BIM) allows for the creation of 3D digital twins of the entire fire protection network, enabling fabricators to visualize the layout and identify potential clashes before any metal is cut. Robotic welding systems are also becoming more common, providing consistent weld quality and increasing production speeds for repetitive components. These advancements not only improve the reliability of the custom spools but also allow for more complex designs that would be difficult to achieve using traditional methods. The integration of digital tracking systems also ensures that every spool can be traced from material sourcing through to final installation.

Long-term Reliability and Maintenance Considerations

While galvanized pipe spools are designed for longevity, regular maintenance and inspections are still necessary to ensure the fire protection network remains in a state of readiness. This includes visual inspections of the exterior surfaces for signs of coating degradation or physical damage, as well as periodic flushing of the system to remove any accumulated debris. Pressure gauges and flow meters should be checked to verify that the system is maintaining its design performance. By choosing high-quality custom-fabricated spools at the outset, facility owners can significantly reduce their long-term maintenance costs and have confidence that their fire protection system will perform its critical role if ever called upon.

Conclusion: The Importance of Quality Fabrication

In the critical field of fire protection, there is no room for compromise. The use of custom-fabricated galvanized pipe spools provides the structural strength, corrosion resistance, and hydraulic performance needed for reliable outdoor networks. From the initial engineering design to the final pressure testing, every step of the fabrication process must be executed with the highest level of care and precision. By focusing on quality materials and advanced manufacturing techniques, fabricators can deliver solutions that not only meet industry standards but also provide the peace of mind that lives and property are well-protected. The investment in superior piping infrastructure is an investment in the safety and resilience of the entire facility.
