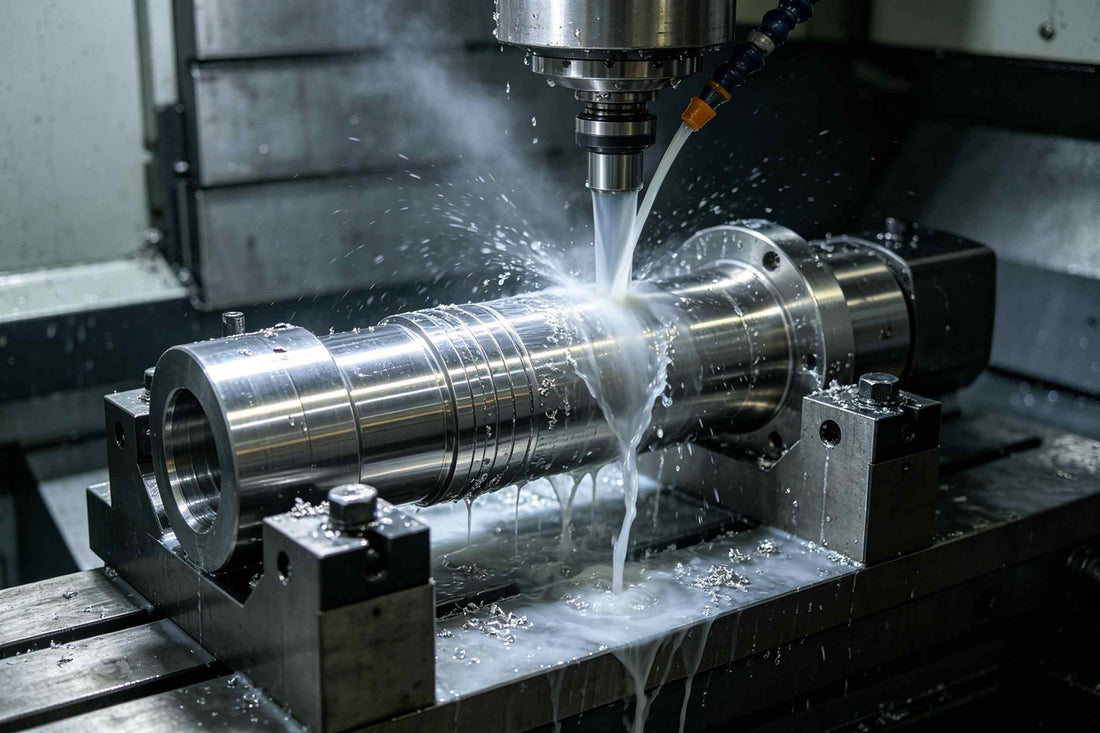

CNC Machining Stainless Steel Parts: Tooling, Coolant, Speed, and Surface Finish Considerations

The Challenges of Machining Stainless Steel

Stainless steel is renowned in the manufacturing world for its exceptional corrosion resistance, strength, and durability. However, these very qualities make it one of the most challenging materials to machine using CNC (Computer Numerical Control) technology. Unlike carbon steel or aluminum, stainless steel has a high tendency to work-harden, which means the material becomes harder and more difficult to cut as it is manipulated by the tool. Furthermore, its low thermal conductivity means that heat generated during the cutting process tends to stay localized at the cutting edge, leading to rapid tool wear and potential damage to the workpiece. Overcoming these challenges requires a deep understanding of the material's metallurgical properties and a strategic approach to selecting tools, parameters, and lubricants. Successfully machining stainless steel parts is a hallmark of a high-precision machine shop, requiring both advanced equipment and seasoned technical expertise to manage the unique mechanical stresses involved in cutting these tough alloys.

Tooling Selection for Stainless Steel

Selecting the right cutting tools is the first and perhaps most critical step in CNC machining stainless steel. Standard high-speed steel (HSS) tools often prove inadequate due to the material's toughness and heat generation. Instead, carbide tools are the industry standard for stainless steel applications. Specifically, sub-micron grain carbide grades coated with Titanium Aluminum Nitride (TiAlN) or Aluminum Chromium Nitride (AlCrN) are preferred for their superior heat resistance and hardness. The geometry of the tool is equally important; a sharp cutting edge with a positive rake angle helps to reduce cutting forces and minimize work-hardening. However, the edge must also be robust enough to withstand the impact of interrupted cuts. For milling operations, variable helix and unequal index end mills are often employed to reduce vibration and chatter, which are common issues when cutting through the dense structure of stainless steel alloys like 304 or 316. Advanced coatings help to reduce the coefficient of friction, further protecting the tool from premature failure and ensuring consistent performance across large production batches.

Optimized Speed and Feed Rates

Finding the 'sweet spot' for speeds and feeds is a delicate balancing act when working with stainless steel. Running the spindle too fast will generate excessive heat, leading to plastic deformation of the tool tip. Conversely, running too slow can exacerbate work-hardening, as the tool 'rubs' the material instead of cleanly shearing it. Generally, lower cutting speeds compared to carbon steel are necessary, often ranging from 30 to 90 surface meters per minute depending on the specific alloy grade. The feed rate must be high enough to ensure the tool is always cutting below the work-hardened layer created by the previous pass. A consistent, aggressive chip load is essential to carry heat away from the cutting zone and ensure a clean cut. Modern CNC controllers with adaptive clearing and high-speed machining (HSM) strategies can help maintain constant tool engagement, significantly extending tool life and improving overall efficiency by optimizing every millisecond of tool path interaction.

The Role of Coolant and Lubrication

In stainless steel machining, coolant is not just a luxury; it is a fundamental requirement for success. Its primary roles are to dissipate heat, lubricate the cutting interface, and flush away chips to prevent recutting. High-pressure through-spindle coolant systems are highly effective at delivering fluid directly to the tool-tip, which is especially important in deep-hole drilling and pocketing operations. Soluble oil-based coolants or synthetic fluids with extreme pressure (EP) additives are typically used to provide the necessary lubricity. The concentration of the coolant should be monitored closely, as an improper mix can lead to poor surface finish and increased tool wear. In some specialized applications, minimum quantity lubrication (MQL) or cryogenic cooling might be considered to manage extreme heat. Proper filtration of the coolant is also vital to remove fine metal particles that could scratch the surface of the workpiece or damage the machine's pump system, ensuring that the cooling process remains clean and efficient throughout the cycle.

Achieving Superior Surface Finishes

The surface finish of a stainless steel part is often a key functional requirement, especially in industries such as food processing, medical devices, and aerospace. Achieving a low Ra (roughness average) value requires a combination of precise machining parameters and appropriate finishing techniques. During the final finishing passes, using a tool with a larger corner radius and a reduced feed rate can help smooth out the tool marks. However, the depth of cut must still be sufficient to avoid rubbing. Beyond the CNC machine, secondary processes like electropolishing, bead blasting, or mechanical buffing are frequently employed to achieve the desired aesthetic and functional surface quality. Electropolishing, in particular, is valued for its ability to remove microscopic burrs and create a passivated, ultra-smooth surface that is highly resistant to bacterial growth and corrosion. The final surface must be free of visual imperfections and meet the rigorous specifications required for high-stakes industrial applications.

Managing Chip Control and Evacuation

Effective chip control is vital to prevent the 'bird-nesting' of long, stringy chips, which is a common problem when turning stainless steel. Long chips can wrap around the tool or workpiece, causing damage and posing a safety risk. Tool geometry with integrated chip breakers is essential for breaking the material into small, manageable pieces. In milling, ensuring that chips are cleared from the path of the tool is critical; if the tool recuts a chip, it can lead to catastrophic failure due to the sudden increase in load and heat. Air blasts or high-pressure coolant are used to ensure the work area stays clear. Proper chip evacuation not only protects the tool and workpiece but also allows the machine to run unattended for longer periods, increasing the overall productivity of the CNC cell. Innovative chip-breaking strategies, including synchronized oscillating tool paths, are constantly evolving to handle the most difficult-to-machine stainless alloys without compromise.

Impact of Alloy Grades on Machinability

It is important to recognize that 'stainless steel' is a broad category encompassing many different alloys, each with its own machining characteristics. Austenitic grades like 304 and 316 are the most common but are prone to work-hardening. Martensitic grades like 410 and 420 are easier to machine but may require heat treatment to achieve their full properties. Ferritic grades like 430 offer a middle ground. Additionally, free-machining grades such as 303 contain additives like sulfur or selenium to improve chip breaking and tool life, although these additives can slightly reduce corrosion resistance and weldability. Understanding the specific grade being machined is essential for selecting the correct starting parameters and tool types. Procurement and engineering teams must work closely to ensure the chosen alloy meets the functional needs of the application while remaining economically viable to manufacture, as the cost difference between grades can have a significant impact on the final project budget.

The Importance of Machine Rigidity and Stability

Finally, the rigidity of the CNC machine itself cannot be overstated. Stainless steel requires significant cutting forces, and any lack of stiffness in the machine frame, spindle, or work-holding will result in vibration and deflection. This vibration leads to poor surface finish, dimensional inaccuracies, and premature tool failure. High-quality work-holding solutions, such as hydraulic chucks and heavy-duty vises, are necessary to ensure the workpiece remains perfectly stationary under load. Furthermore, using shorter tool holders and minimizing tool overhang will help maintain stability and reduce the risk of deflection. When machining complex stainless steel parts, the combination of a rigid machine, high-performance tooling, and optimized programming is what separates a successful project from a costly failure. Continuous investment in machine technology, including active vibration damping systems and high-torque spindles, is essential for any shop aiming to lead in the competitive field of high-precision stainless steel fabrication, where quality and reliability are the ultimate benchmarks of success.
